Removing Side Section Lower Part

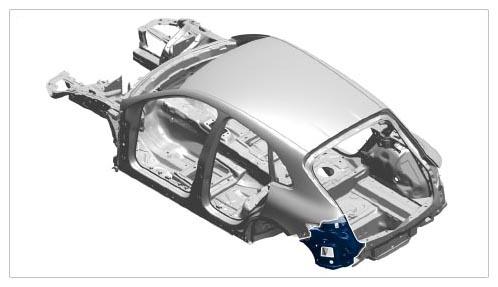

Fig 1: Side Section Lower Part Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using spotweld drill;  .
   1. 1.1. Drill out spotweld -A-  from the inside.

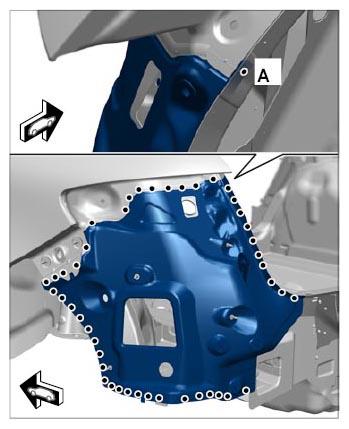

      Fig 2: Removing Side Section Lower Part

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

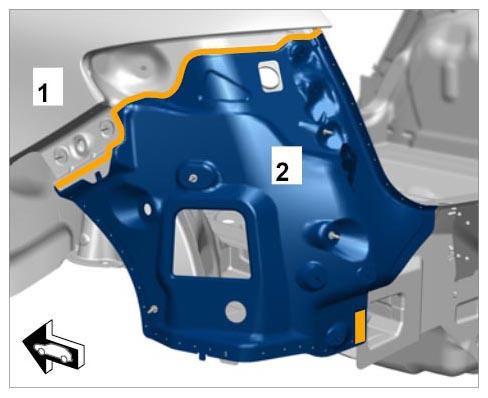

2. Heat the marked bonding surfaces.
   1. 2.1. Make a sufficient gap between the side section -1-  and side section lower part -2- (-arrows-)  .
   2. 2.2. Remove side section lower part.
