Preparing Rear Side Section For Installation

  1. Fit in rear side section.
    1. 1.1. Cut rear side section at the transitions to the body leaving an overlap of 30 mm.

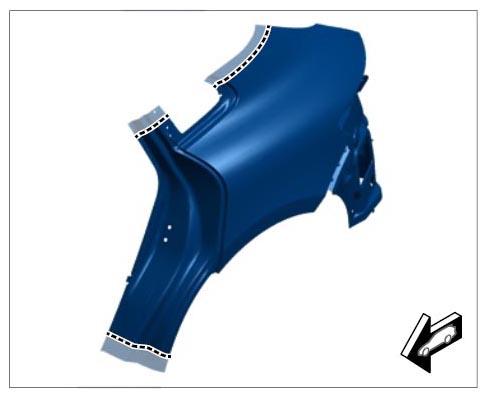

      Fig 1: Identifying Rear Side Panel
      G10030969Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Prepare connection areas for bonding and welding.

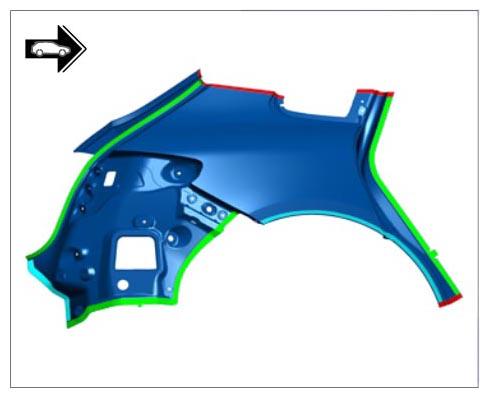

    Fig 2: Identifying Rear Side Panel Connection Areas
    G10030970Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Red Plug-welding/apply a full weld using inert gas without bonding
    Green Resistance spot-welding
    Blue Bonding
