Installing Rear-End Well

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install rear-end well and check that it fits perfectly. Check gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
2. Resistance spot-weld the rear-end well.

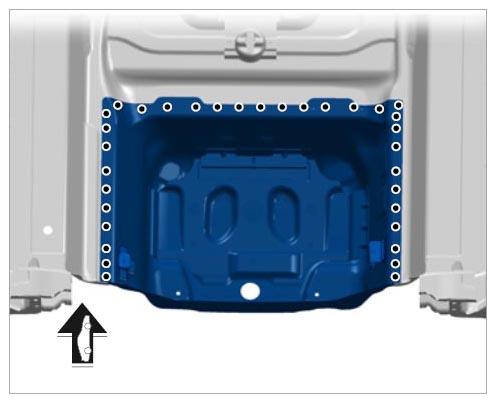

   Fig 1: Identifying Rear-End Well Spot-Weld Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
