Preparing Connection Areas Of The Body For Installation

  1. Align the sealing surface and connections of the body.
  2. De-burr connection points and prepare them for welding.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.
  3. Prepare marked areas for welding and bonding. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

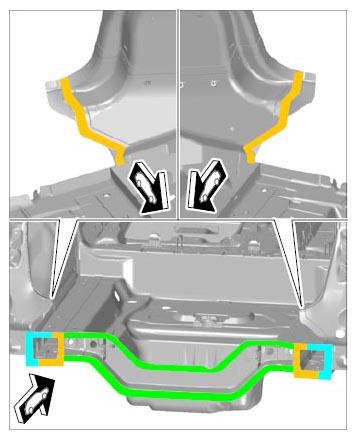

    Fig 1: Identifying Body Connection Areas
    G10030866Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Orange Bonding + resistance spot-welding
    Green Resistance spot-welding
    Blue Bonding
