Removing Rear Transverse Lock Support

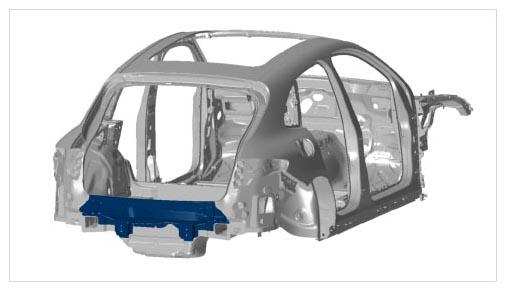

Fig 1: Rear Closing Panel Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

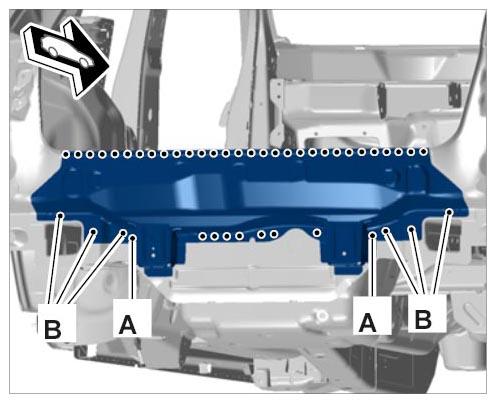

1. Drill out spotwelds using spotweld drill;  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

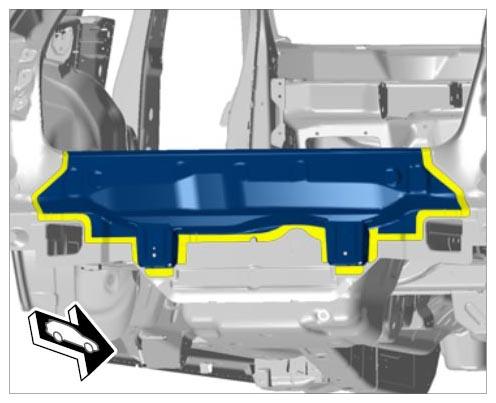

2. Heat the marked bonding surfaces.
   1. 2.1. Remove rear transverse lock support.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
