Removing Inner Rear Closing Panel

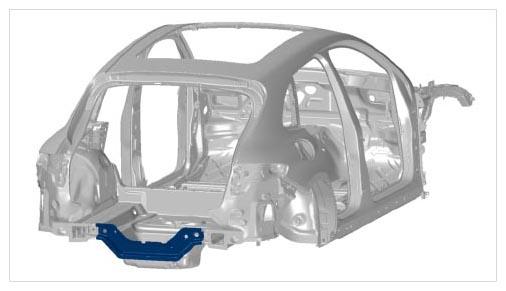

Fig 1: Inner Rear Closing Panel Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using spotweld drill;  .

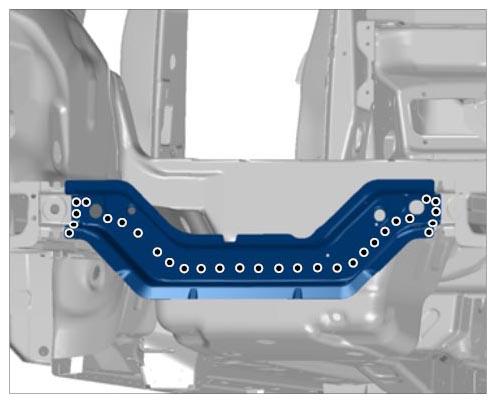

   Fig 2: Removing Inner Rear Closing Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Heat the marked bonding surfaces.
   1. 2.1. Remove inner rear closing panel.

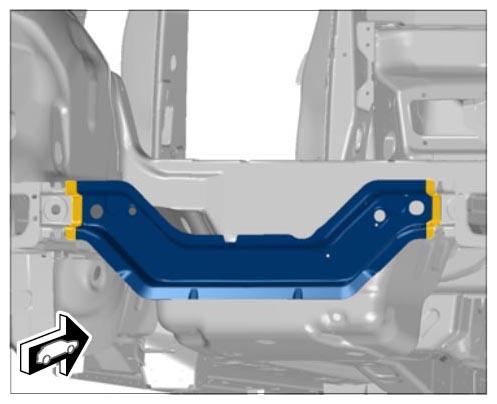

      Fig 3: Removing Inner Rear Closing Panel

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
