Removing Side Member Reinforcement

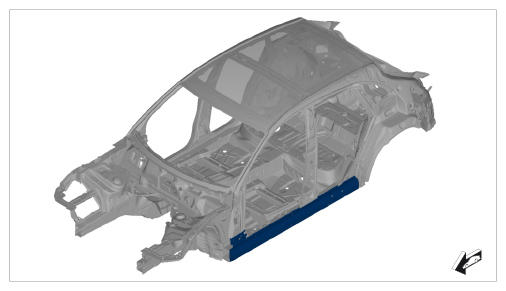

Fig 1: Side Member Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove side member reinforcement.
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 1.1. Drill out spotwelds using spotweld drill .

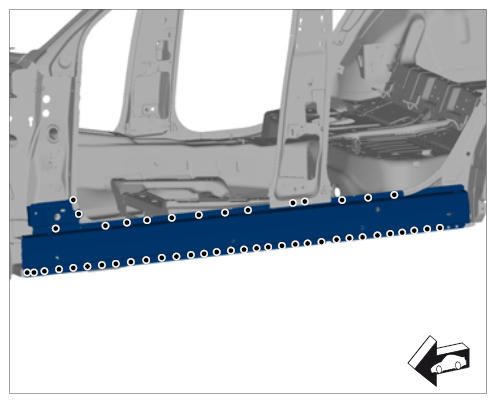

  Fig 2: Identifying Side Member Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat bonding areas.

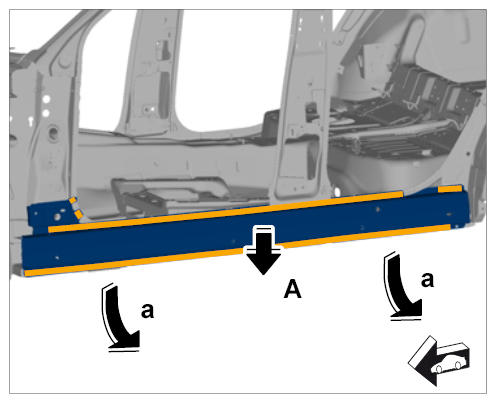

1. 2.1. Pull down side member reinforcement in the inner B-pillar area -arrow A- and remove it -arrows a- .

  Fig 3: Identifying Side Member Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
