Installing Cowl Panel Cover

  1. Installation is performed in reverse order to removal.
  2. Engage locking lug -3-  on the cowl panel cover in the retaining strip on the windscreen -4-  .

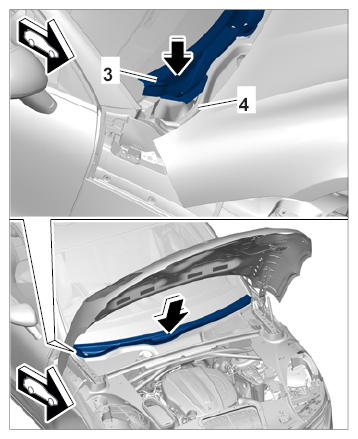

    Fig 1: Installing Cowl Panel Cover
    G10030551Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip in cover for plenum panel and check that the rubber profile is seated correctly.
