Installing Control Valve For Air Cushion

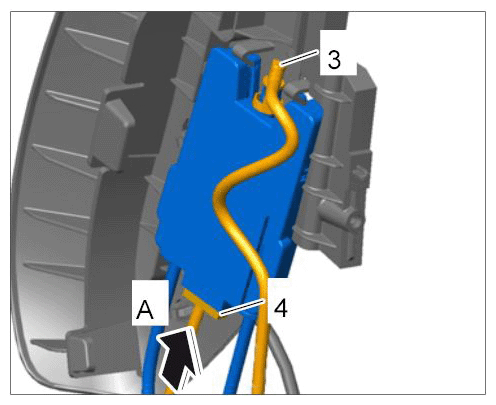

  1. Connect the pressure line (blue) -3-  to the control valve.
    G11981912

    Connecting pressure line and connector

  2. Insert electric plug connection -4-  (-A-  ) until the connector engages securely.

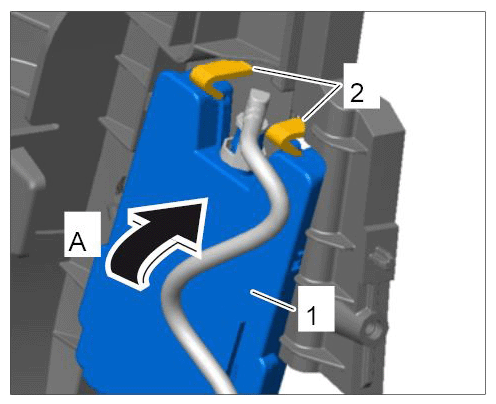

  3. Fit the control valve -1-  (-A-  ) and engage it in the locking mechanisms -2-  .
    G11981913

    Securing control valve

  4. Screw in two fastening screws for the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST - SECTION ON "INSTALLING"

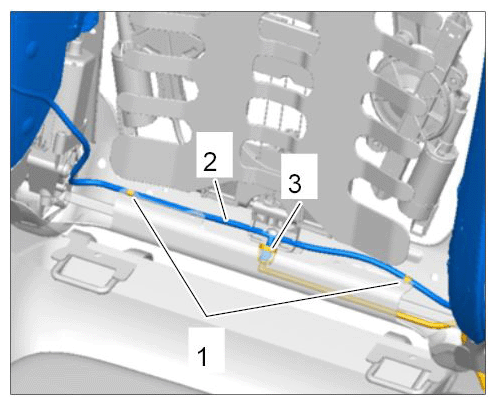

  5. Connect control valve pressure line (green) -3-  to the air cushion pressure line (green) -2-  .
    G11981914

    Securing pressure line

  6. Pull the pressure line (red) through between the backrest frame and seat.

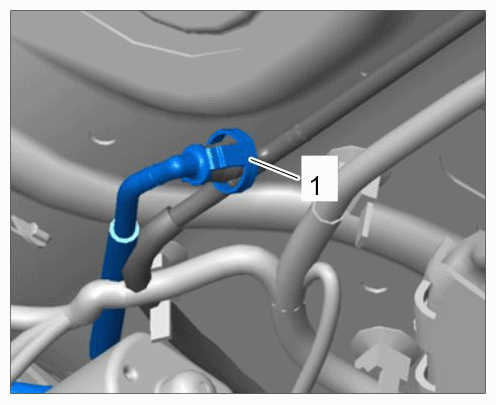

  7. Fit the pressure line (red) -1-  under the seat.
    G11981915

    Fitting pressure line under seat
