Removing Air Cushion For Seat

  1. Release and pull off the pressure line (red) -1  - under the seat.
    G11981834

    Disconnecting pressure line under seat

  2. Unclip fixing clips -1-  on both air cushions -2-  from the brackets.

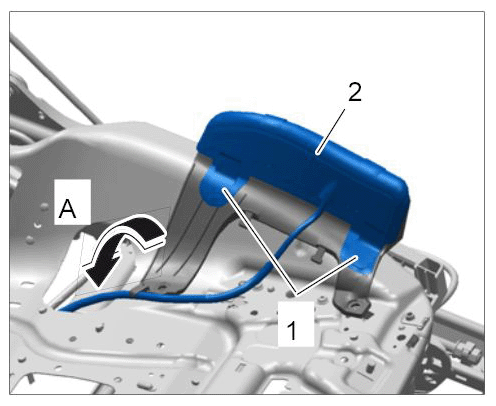

    G11981835

    Loosening air cushions for seat

  3. Pull both air cushions -2-  through the cut-out in the seat frame -A-  .
