Removing front headrest

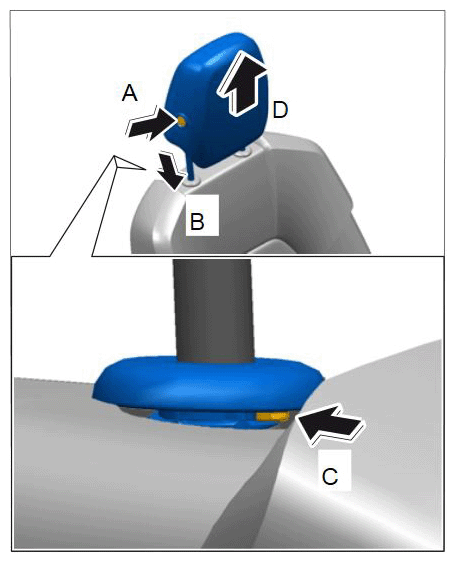

G11981984

Removing front headrest

  1. Push adjusting knob -A-  and pull headrest up as far as possible.
  2. Press down cushion beside the right-hand headrest guide -B-  .
    NOTE:

    The locking mechanism is on the right-hand side of the vehicle on all outer headrests and must always be pressed towards the left-hand side of the vehicle.

  3. Press locking mechanism inwards with your finger -C-  and pull the headrest up -D-  and out at the same time.
