Installing rear headrest

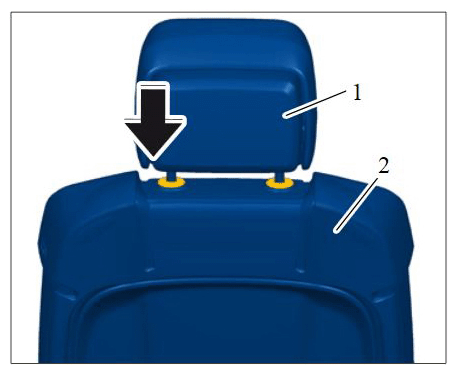

  1. Guide the headrest -1-  into the holes in the rear backrest -2-  from above and press downwards -arrow-  .
    G11981986

    Installing rear headrest

  2. Lock the backrest in upright position.
