Replacing Rear Backrest

  1. Remove padding for rear backrest. → 745219 REMOVING AND INSTALLING PADDING FOR REAR BACKREST - SECTION ON "REMOVING"
  2. Remove headrest guide -1-  .
    1. 2.1. Press in fixing clips -2-  on the left and right and pull headrest guide up and out -arrow-.
      G11981935

      Removing headrest guide

  3. Remove covers for lashing points -1-  .
    1. 3.1. Carefully press in fixing clips -2-  for the covers and remove cover to the rear -arrow-  .

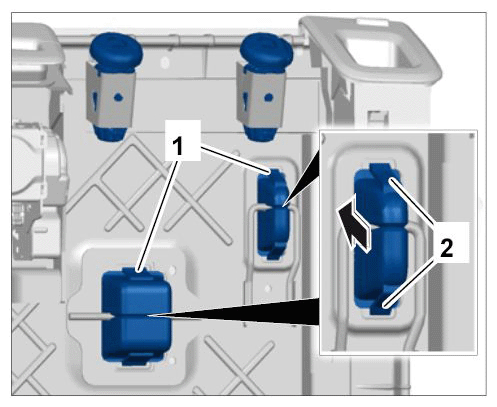

      G11981936

      Removing covers for lashing points

  4. Remove lock for rear backrest. → 726819 REMOVING AND INSTALLING LOCK FOR REAR BACKREST - SECTION ON "REMOVING"
  5. Remove three-point belt for middle seat (only necessary for left rear backrest).
  6. Replace rear backrest.
  7. Install three-point belt for middle seat (only necessary for left rear backrest).
  8. Install lock for rear backrest. → 726819 REMOVING AND INSTALLING LOCK FOR REAR BACKREST - SECTION ON "INSTALLING"
  9. Clip in and secure covers for latching points.
  10. Install headrest guide.
  11. Install padding for rear backrest. → 745219 REMOVING AND INSTALLING PADDING FOR REAR BACKREST - SECTION ON "INSTALLING"
