Removing rear left backrest

  1. Loosen seat-belt buckle for middle seat from the body.

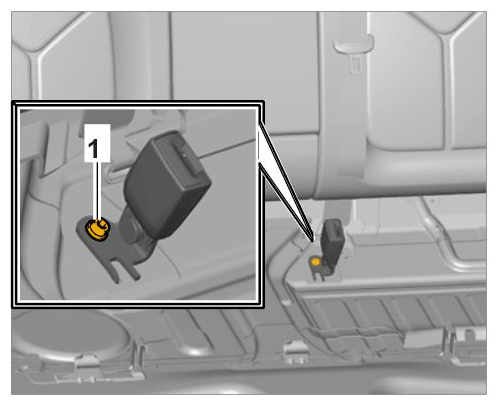

    G11981924

    Loosening seat-belt buckle

  2. Fold load-through provision forward.
  3. Unscrew and remove fastening screw -1-  for left supporting bow -2-  .

    Remove supporting bow by moving it upwards -arrow A-  and unhooking it and pulling it forward out of the cross bolt -arrow B-  .

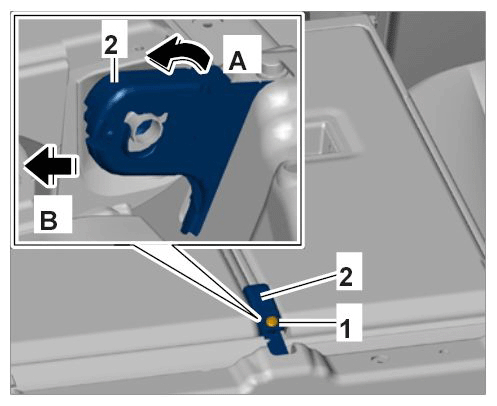

    G11981925

    Removing supporting bow

  4. Lift rear left backrest -1-  out of the center mount -2-  and remove it -arrow A-  .

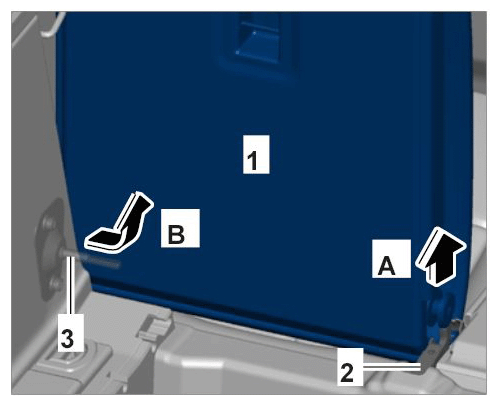

    G11981926

    Removing rear backrest

  5. Pull rear left backrest -1-  towards the center of the vehicle and remove it from the mount on the body -3-  (-arrow B-  ).
  6. Only for vehicles with heated seats:  Disconnect electric plug connection between the rear seat and backrest.
