Installing rear right backrest

NOTE:
  • The illustrations show the other side as an example  .
  • The removal and installation procedure for this side is practically identical  .
  1. Guide rear right backrest -1-  into the mount on the body -2- (-arrow A-).

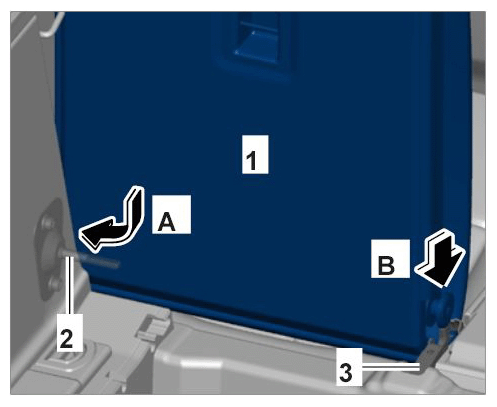

    G11981932

    Installing rear backrest

  2. Only for vehicles with heated seats:  Connect electric plug connection between the rear seat and backrest.
  3. Guide rear right backrest -1-  into the center mount -3-  (-arrow B-  ).
  4. Install supporting bow -1 -  (-arrows-  ) and secure it Tightening torque 12 Nm (9 ftlb.)  .
NOTE:

Always replace the fastening screws on the seat assembly after customer service and reworking.

Micro-self-locking or self-tapping screws must not be modified, greased or loosened and then screwed in again.

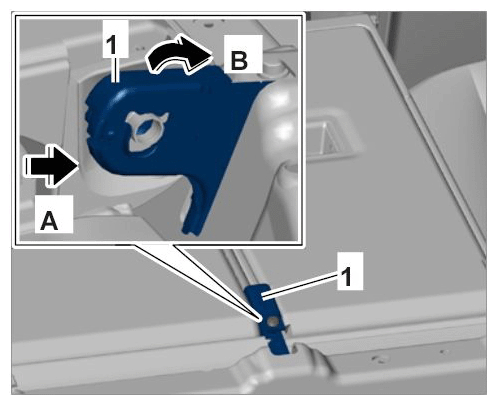

G11981933

Securing supporting bow
