Installing Lumbar Support

  1. Press the retaining bars -4-  together and engage them in the backrest frame -arrow A-  .
    G11981883

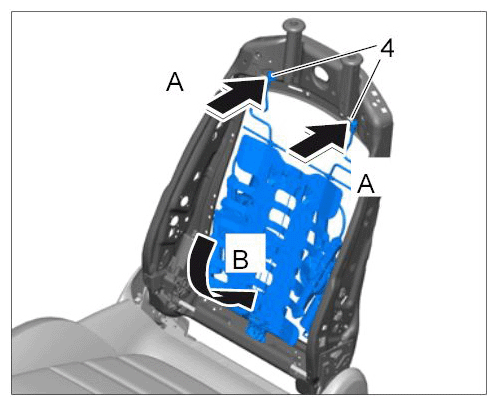

    Positioning lumbar support

  2. Fold down lumbar support -arrow B-  .
  3. Join the lumbar support and backrest frame using a new blind rivet -3-.
    G11981884

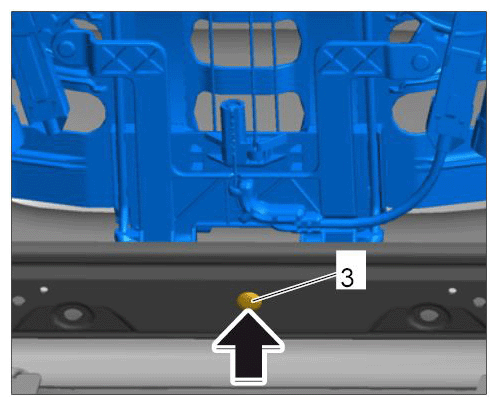

    Joining lumbar support and backrest frame

  4. Plug in electric plug connections for lumbar support adjustment motor -1-  and lumbar curvature motor -2-  (-arrows-  ) until they engage securely.
    G11981885

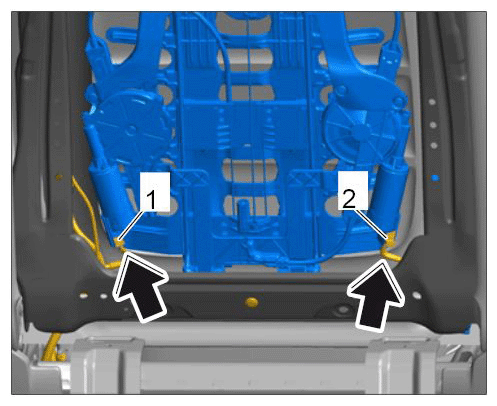

    Plugging in connectors for lumbar motors
