Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

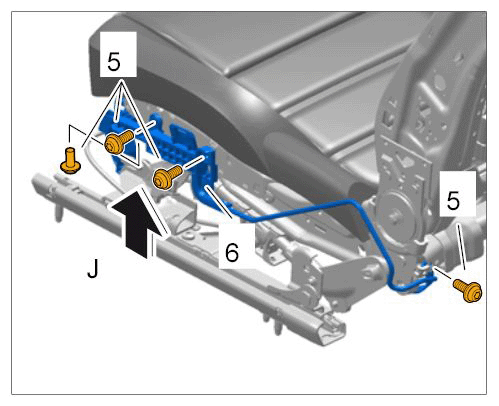

| Fastening screw securing side bracket to seat | Item 5 | Tightening torque | 7.5 Nm (5.5 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Securing bracket at the sides |
|||||

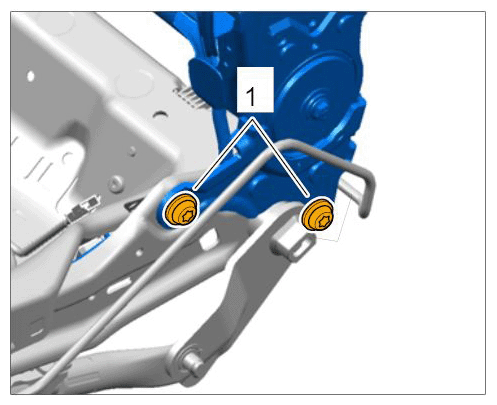

| Fastening screws securing | Item 1 | Tightening | 33 Nm | +/-3 Nm (+/- | |
| backrest frame to seat frame | torque | (24 ftlb.) | 2 ftlb.) | ||
Removing backrest frame
