Removing Backrest Frame

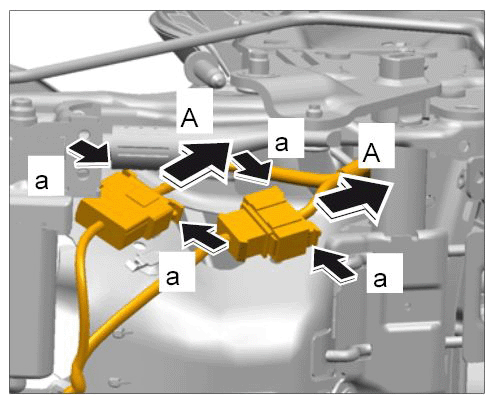

  1. Release two electric plug connections under the seat -arrows a-and disconnect them -arrows A-  .
    G11981861

    Disconnecting wire harness for backrest

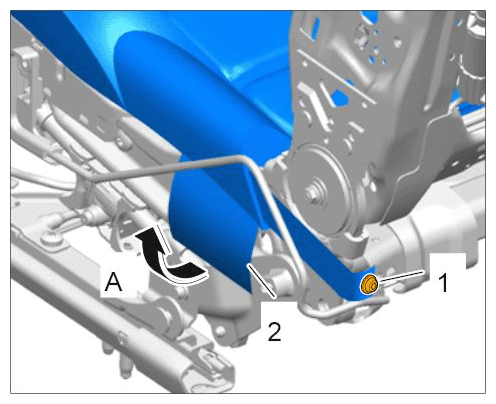

  2. Pull out fixing clip -1-  and detach cover for rear seat surface -2- (-arrow A-  ).
    G11981862

    Loosening cover for rear seat

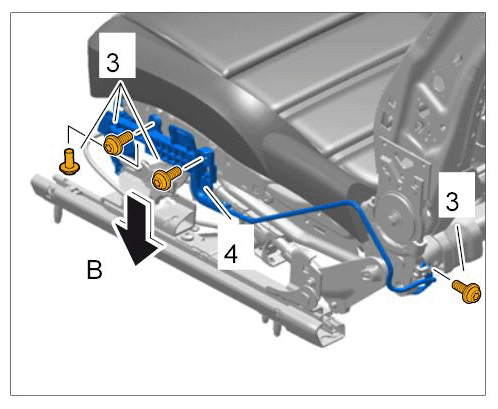

  3. Unscrew fastening screws -3-  , pull bracket -4-  down -arrow B-  out of the catches and detach cover on seat frame.
    G11981863

    Loosening bracket at the sides

    A second mechanic is required:

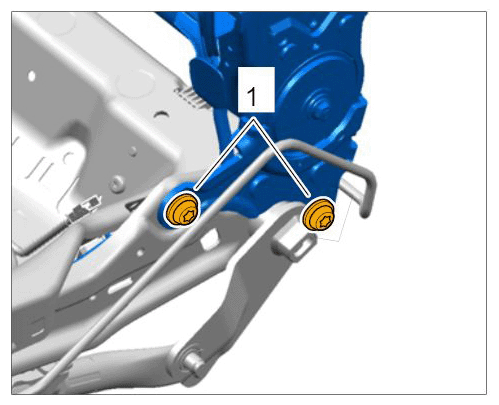

  4. First mechanic:  Unscrew two fastening screws -1-  from the backrest frame on both sides.
    G11981864

    Removing backrest frame

  5. Second mechanic:  Pull electric lines through between the seat frame and seat padding.
