Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing holder for air cushion on backrest Item 1 Tightening torque 2.5 Nm (2 ftlb.) +/-0.3 Nm (+/-0.2 ftlb.)

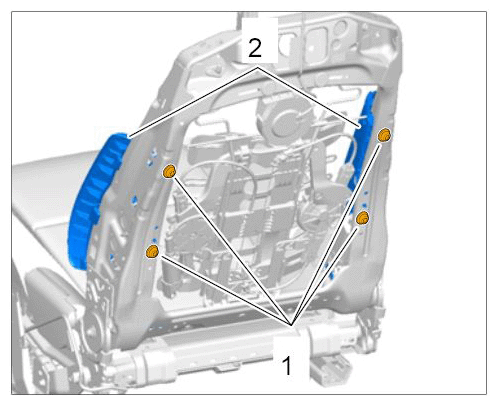

G11981850

Removing air cushion for backrest
