Installing Air Cushion For Backrest

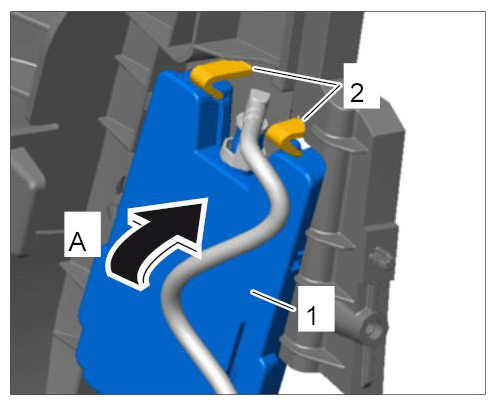

- On the left side, fit the control valve -1-
(-A-
) and engage it in the locking mechanisms -2-
.
Securing control valve

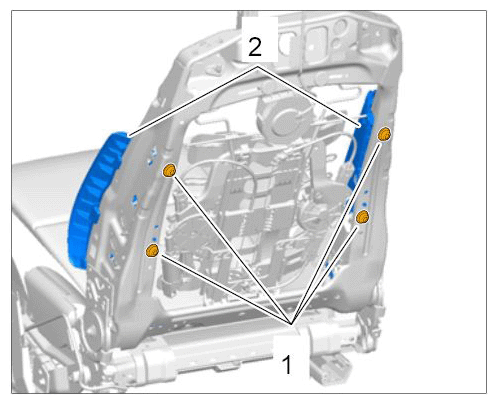

- Position holder for air cushion for backrest -2-
and tighten the fastening screws -1-
until secure Tightening torque 2.5 Nm (2 ftlb.) +/-0.3 Nm (+/-0.2 ftlb.)
.
Securing air cushion for backrest
- Connect pressure line -2-
for air cushions at the connection point -3-.

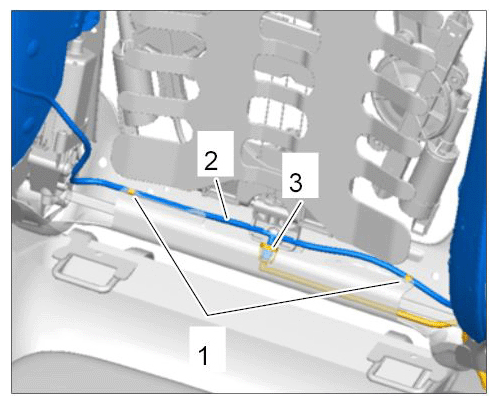

Securing air line
- Fit tie-wrap -1- on the pressure line.
