Installing Air Cushion For Seat

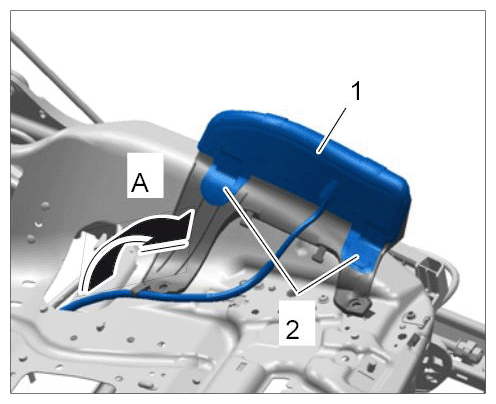

  1. Pull both air cushions -1-  up through the cut-outs in the seat frame from below -A-  .
    G11981836

    Fitting air cushion for seat

  2. Clip fixing clips -2-  for both air cushions -1-  into the brackets.

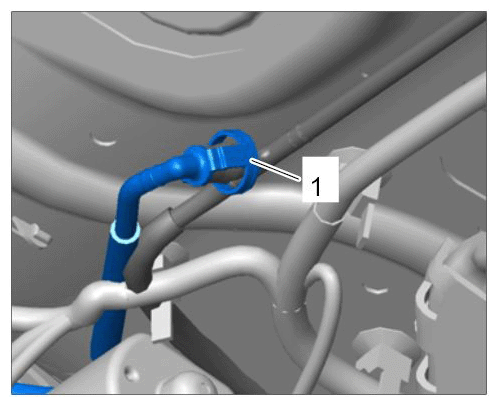

  3. Fit the pressure line (red) -1-  under the seat.
    G11981837

    Fitting pressure line under seat
