Mounting Front Seat On Assembly Fixture

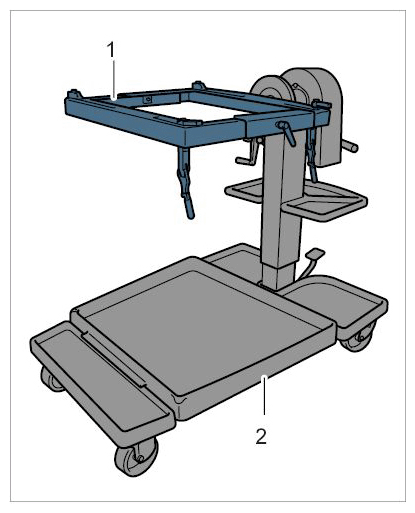

1. Side cushion and backrest mount WE 1293 -1-  must be fitted on the engine/transmission repair stand WW-MG 600/v WE 1171 -2-  .

   Fitting seat mounting

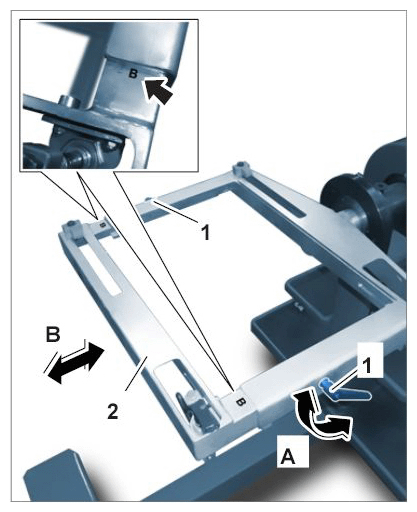

2. Adjust the seat mounting.
   1. 2.1. Loosen locking lever -1-  (-arrow A-  ).
   2. 2.2. Adjust seat mounting -2-  according to the width -Marking B-  of the seat frame -arrow B-  .
   3. 2.3. Secure locking lever -1-  .

      Adjusting seat mounting

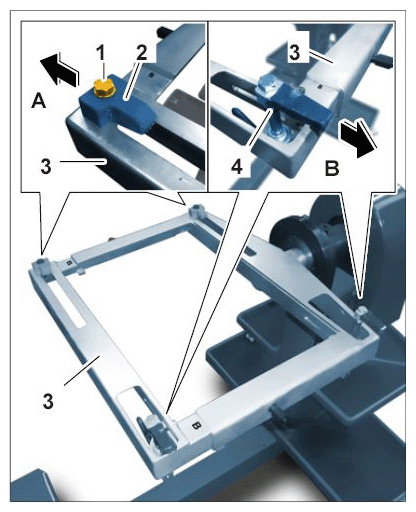

3. Adjust the latch.
   1. 3.1. Loosen fastening screw -1-  and slide locking wedge -2-  as far as the outer edge of the seat mounting -3-  (-arrow A-  ).
   2. 3.2. Tighten fastening screw -1-  .
   3. 3.3. Slide locking lever -4-  as far as the outer edge of the seat mounting -3-  (-arrow B-  ).

      Adjusting latch

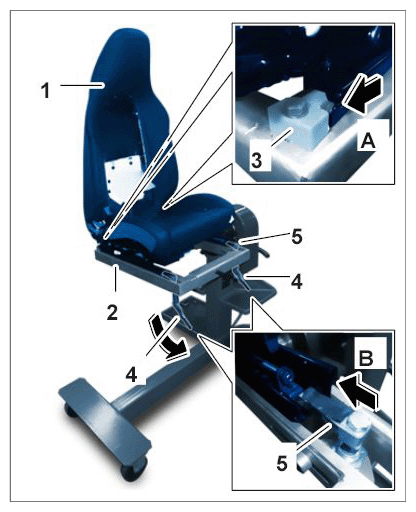

4. Fit front seat.
   1. 4.1. Position the front seat -1-  on the seat mounting -2-  .
   2. 4.2. Slide the seat frame as far as it will go into the locking wedge -3-  (-arrow A-  ).
   3. 4.3. Slide locking lever -4-  into the seat frame -arrow B-  and lock it -arrow-  .

      Increase or reduce the preload on the locking lever -4-  using the adjusting screw -5-  if necessary.

      Fitting front seat

95BAA1, 95BAB1, 95BAD1, 95BAF1, 95BAJ1, 95BAK1, 95BAS1, 95BAX1, 95BAY1, 95BAZ1

Model year as of 2014, Model year up to 2020

C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C46, C96, C97, C98, C99
