Installing Front Seat

WARNING: Incorrect handling of safety bolts
  • Danger of injury
  • Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

NOTE:
  • Some of the repair illustrations show only one side of the vehicle or a similar component  .
  • Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .
NOTE:

Always replace the fastening screws on the front seat after customer service and reworking. The micro-self-locking or self-tapping screws must not be treated, greased or loosened and then screwed on again.

  1. Place front seat in the vehicle and tilt it backwards.
  2. Plug in electric plug connections for driver's seat -1, 2 and 3-  .
    G11981817

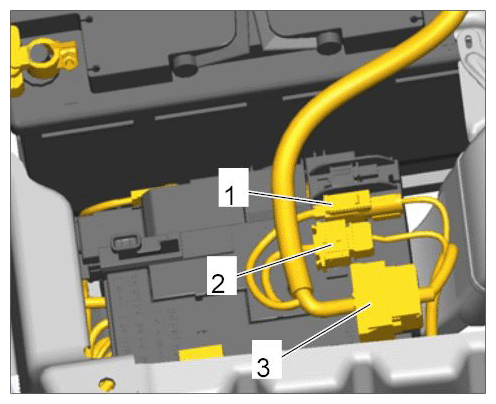

    Electric plug connections for driver's seat

    NOTE:

    The number of electric plug connections can vary, depending on equipment.

  3. Fold the front seat forward -arrow A-  and align it on the seat frame with the centering pins -arrow B-  .
    G11981818

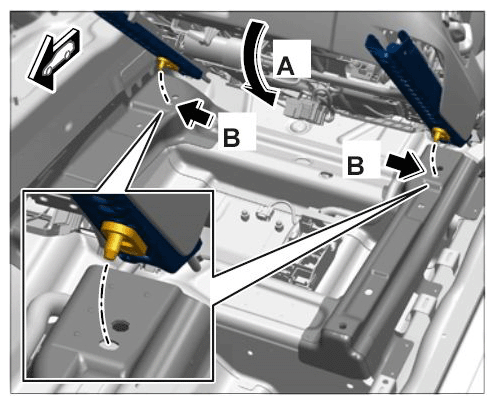

    Positioning front seat on seat frame

  4. Connect the battery → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
  5. Move front seat all the way back. Screw in front fastening screws -4-  only until the seat rails are touching the seat frame.
    G11981819

    Tightening fastening screws on front seat rail

  6. Move the front seat all the way forward and secure it to the seat frame at the rear with the fastening screws -2-  . Tightening torque 50 Nm (37 ftlb.) +/-7.5 Nm (+/-5.5 ftlb.)  .
    G11981820

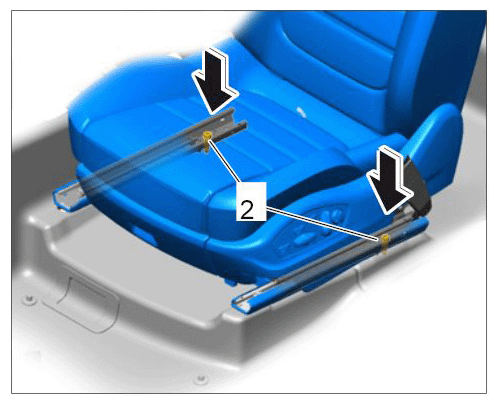

    Securing front seat to seat frame at the rear

  7. Carefully fit the rear caps -1-  .
    G11981821

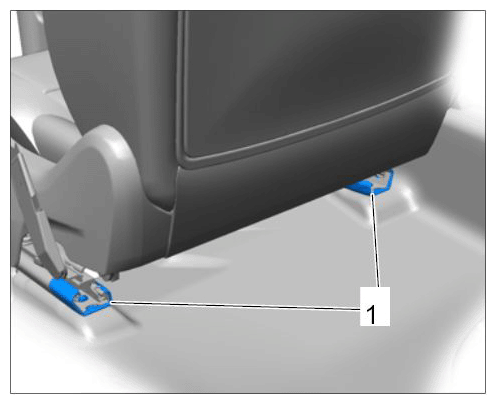

    Caps on rear seat rail

  8. Move the front seat all the way back and secure it to the seat frame at the front by tightening the fastening screws -4-  to Tightening torque 50 Nm (37 ftlb.) +/-7.5 Nm (+/-5.5 ftlb.)  .
    G11981822

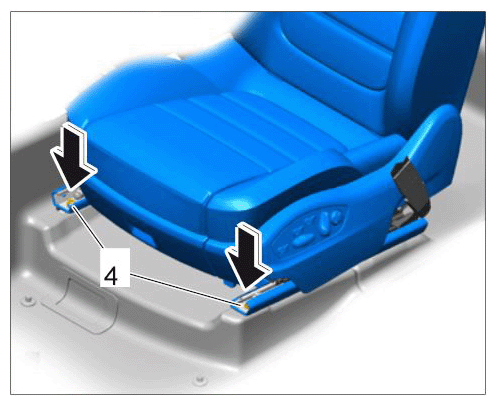

    Tightening fastening screws on front seat rail

  9. Fit the caps at the front -3-  on the seat rail.
    G11981823

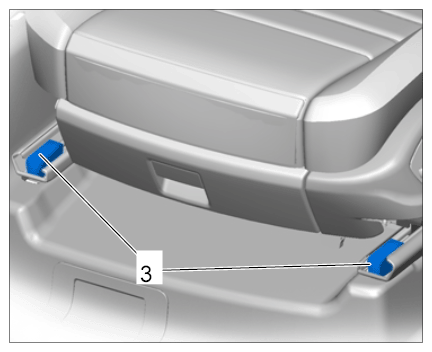

    Caps on front seat rail

    NOTE:

    Do not twist the three-point belt during installation!

  10. Install seat belt mount.
    NOTE: Incorrect handling of spring plate on seat belt mount
    • The seat belt must be replaced.

    → Only bend the spring plate up as far as required to allow you to push the seat belt mount off the mounting pin.

    → The spring plate must be touching the mounting pin during installation with preload.

    1. 10.1. Position seat belt mount -2-  on the retaining pin -4-  and pull upward until the retaining clip -3-  locks with an audible click.
      G11981824

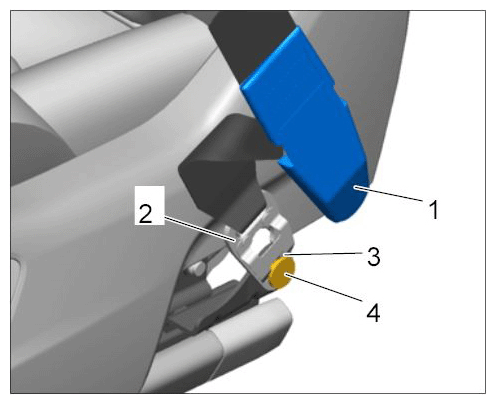

      Seat belt mount on front seat

    2. 10.2. Pull on the belt strap. The retaining clip -3-  must engage fully on the holder.
    3. 10.3. Push the cap -1-  over the seat belt mount -2-  and lock it. The label on the seat belt must be pushed into the cap when you push the cover down.
