Removing KESSY Antenna On Centre Console

  1. Unscrew fastening screws -1-  and remove KESSY antenna on centre console -2-  .
  2. Disconnect electric plug connection -3-  .

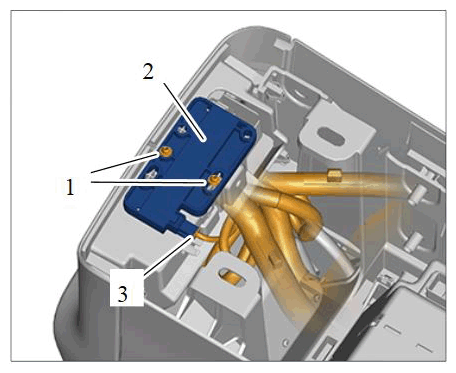

    G11984742

    Removing KESSY antenna on centre console
