Removing Alarm Siren

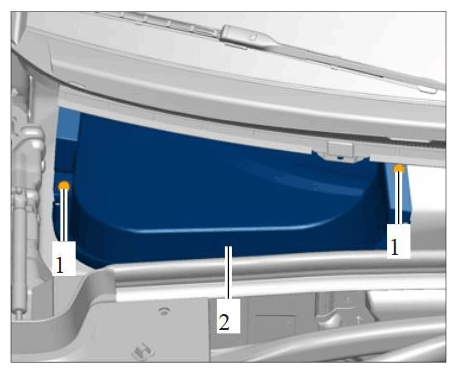

  1. Screw off fastening nuts -1-  and remove cover -2-  .
    G11984736

    Removing cover

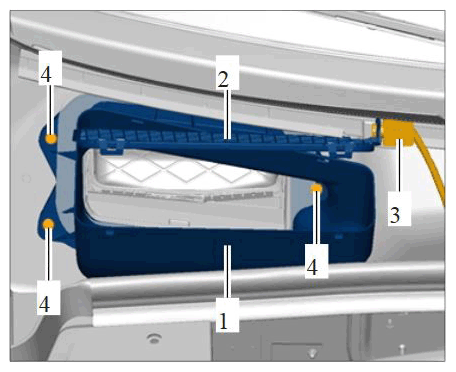

  2. Remove air inlet -1-  .
    1. 2.1. Disengage grille -2-  in front of the air inlet and pull it to the rear and out of the guides.
    2. 2.2. Carefully set the grille aside and leave electric plug connection on the air quality sensor -3-  connected.
    3. 2.3. Screw off fastening nuts -4-  and remove air inlet.
      G11984737

      Removing air inlet

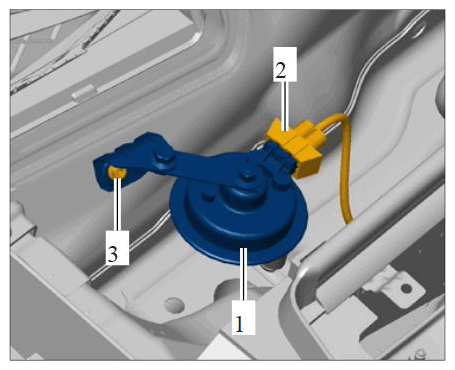

  3. Remove alarm siren -1-  .
    1. 3.1. Release electric plug connection -2-  and pull it off the alarm siren.
    2. 3.2. Unscrew fastening nut -3-  and remove alarm siren and holder.
    G11984738

    Removing alarm siren (alarm siren without Ni-MH accumulator shown)
