Removing Reading Light

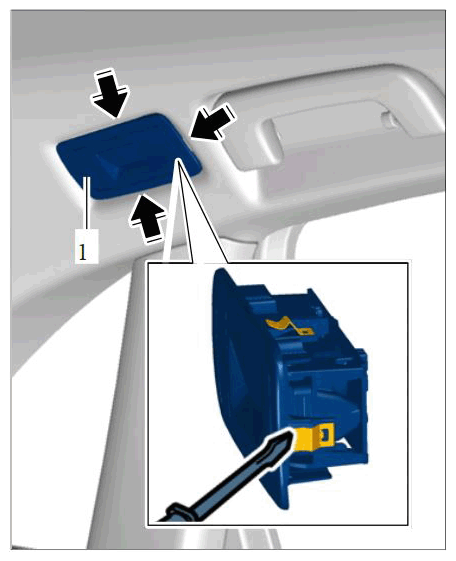

  1. Release locks -arrows-  for the reading light -1-  at the same time using a small screwdriver and lever the reading light out of the headliner.
    G11984731

    Removing reading light

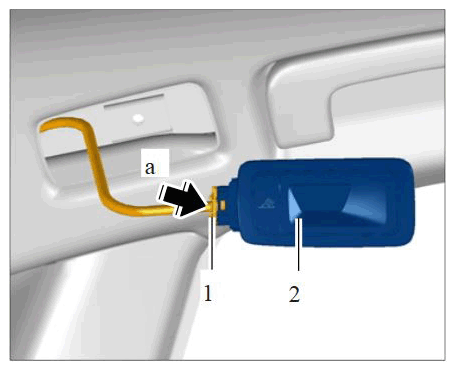

  2. Release electric plug connection -1-  (-a-  ) and pull it off the reading light -2-  .
    G11984732

    Disconnecting electric plug connection
