Removing Glove Compartment Light

  1. Switch off ignition and pull remote control out of ignition lock.
  2. Open the glove compartment and unclip glove compartment light -1-  from the glove compartment using a plastic wedge -a-  .
    G11984729

    Loosening glove compartment light

  3. Release electric plug connection -1-  (-a-  ) and disconnect it from the glove compartment light -2-  .
    G11984730

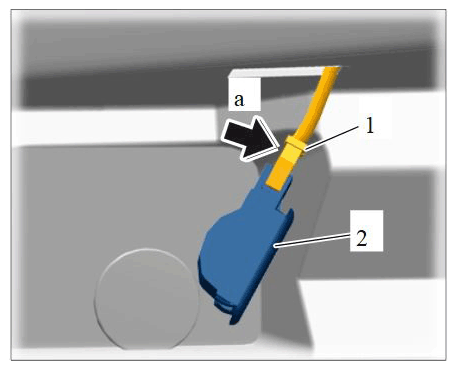

    Disconnecting electric plug connection
