Removing Luggage Compartment Lamp

  1. Lever luggage compartment lamp -1-  out of the trim panel using a plastic wedge.
  2. Release electric plug connection -2-  (-a-  ) and pull it off the luggage compartment lamp.

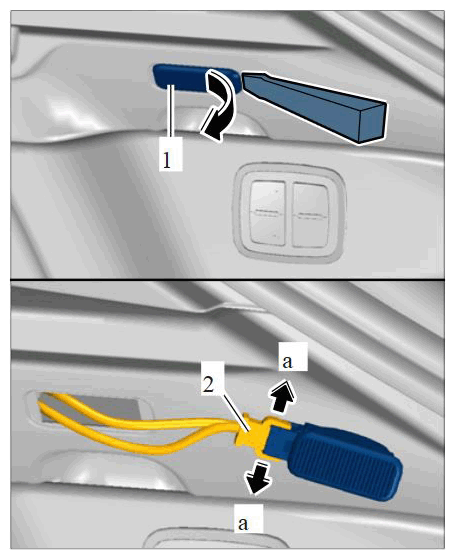

    G11984727

    Removing luggage compartment lamp
