Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for door arrester Item 1 Tightening torque 33 Nm (24 ftlb.)

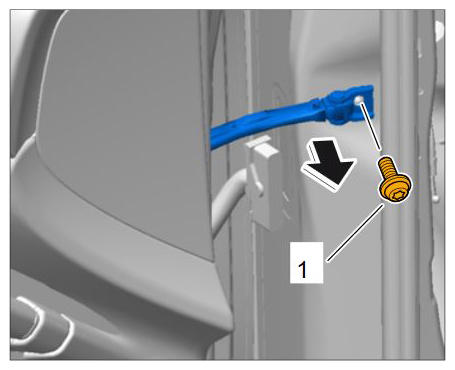

G11984231

Unscrewing fastening screw at the body
Fastening screw for door stay Item 2   8 Nm (6 ftlb.)
    Tightening torque

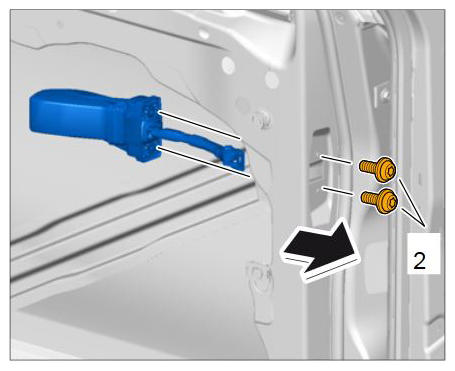

G11984232

Unscrewing fastening screws for door
