| Heater holder to body |
M6 x 30 thread |
Tightening torque |
20 Nm (15 ftlb.) |
|
|
| Exhaust silencer pipe to underbody |
Nut, M6 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
| Exhaust silencer holder to underbody |
Nut, M6 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
| Solenoid valve holder to body |
Nut, M6 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
| Auxiliary heater hose in wheel arch to body |
Nut, M6 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|

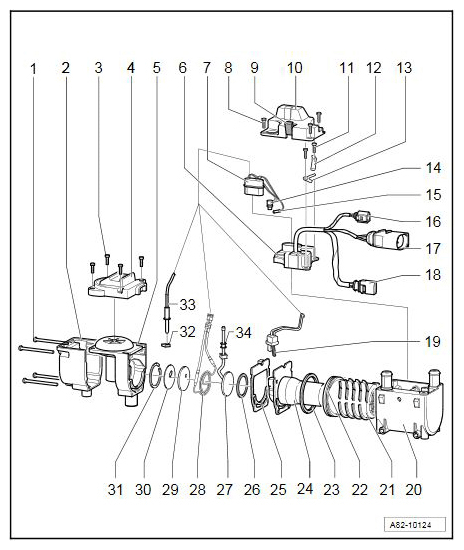

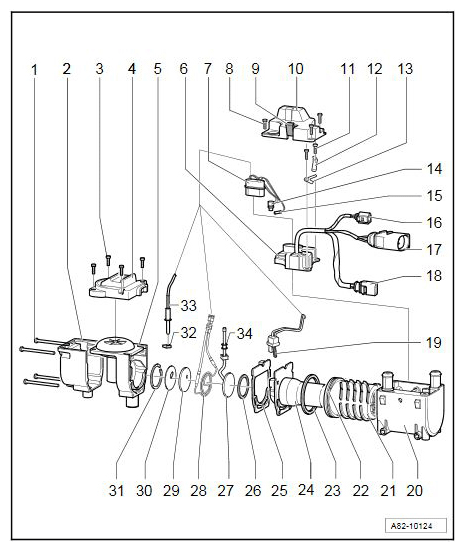

| Screws securing cover for electric motor to combustion air housing |
Item 1 |
Tightening torque |
6 Nm (4.5 ftlb.) |
|
|
|
|
| Screws securing cover to combustion air blower |
Item 3 |
Tightening torque |
3 Nm (2 ftlb.) |
|
|
|
|
| Screws securing cover for control unit to heat exchanger housing |
Item 8 |
Tightening torque |
3 Nm (2 ftlb.) |
|
|
|
|
| Screws securing retaining clip to heat exchanger housing |
Item 11 |
Tightening torque |
3 Nm (2 ftlb.) |
|
|
|
|
| Dashboard bracket to air conditioner |
Tapping screw |
Tightening torque |
3.6 Nm (2.5 ftlb.) |
|
|
| Compressor to engine |
M8 x 90 thread |
Tightening torque |
25 Nm (19 ftlb.) |
|
|
| Footwell outlet vent to air conditioner |
M5 x 12 thread |
Tightening torque |
1.3 Nm (0.7 ftlb.) |
|
|
| Left footwell outlet vent to body |
|
Tightening torque |
1.5 Nm (1 ftlb.) |
|
|
| Air inlet housing cover to body |
Hexagon nut |
Tightening torque |
3.5 Nm (2.5 ftlb.) |
|
|
| Air inlet housing to body |
|
Tightening torque |
3.5 Nm (2.5 ftlb.) |
|
|
| Expansion valve to air conditioner |
|
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
| Heating/fresh-air unit to tunnel |
Hexagon-head bolt, M5 x 15 |
Tightening torque |
6 Nm (4.5 ftlb.) |
|
|
| Refrigerant lines to air-conditioning compressor |
|
Tightening torque |
20 Nm (15 ftlb.) |
|
|
| Refrigerant line to expansion valve |
M8 x 35 thread |
Tightening torque |
12 Nm (9 ftlb.) |
|
|
| Refrigerant lines to condenser |
M6 x 25 thread |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
| Refrigerant lines to connection point in front left wheel housing |
M8 x 28 thread |
Tightening torque |
12 Nm (9 ftlb.) |
|
|
| Refrigerant line holder to engine |
M6 thread/section of line from evaporator to compressor |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
| Refrigerant lines to condenser connection point |
M6 x 25 |
Tightening torque |
8 Nm (6 ftlb.) |
|
|
| Refrigerant line holder to dual clip for refrigerant lines |
Tapping screw |
Tightening torque |
4.5 Nm (3.25 ftlb.) |
|
|
| Refrigerant line holder to lock carrier |
|
Tightening torque |
2.5 Nm (2 ftlb.) |
|
|
