Removing Camshafts

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

During removal, note the installation position and allocation of the camshafts and bearing covers on a sheet of paper in such a way that they cannot be mixed up.
Protect camshafts and bearing covers from dirt and place the components on a clean surface according to installation position.

Slowly and uniformly loosen and then unscrew all M6 screws (according to cylinder bank) -1 and 6-3 and 5- on the camshaft bearing covers -2. 4 and 5-2. 4 and 6- ,
The housings are marked E for intake camshaft and A for outlet camshaft. The housings are numbered consecutively by cylinder.

The housings are seated very securely in the cylinder head because of a dowel sleeve -3-1- , Jiggle free using a pliers if necessary.

Place on a marked, clean surface.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

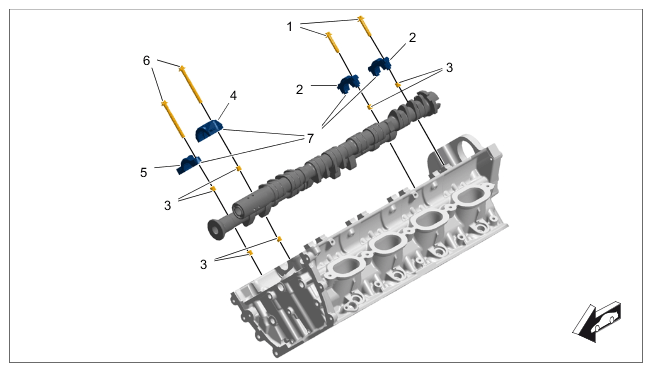

Camshaft mount, cylinder bank 1 to 4

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

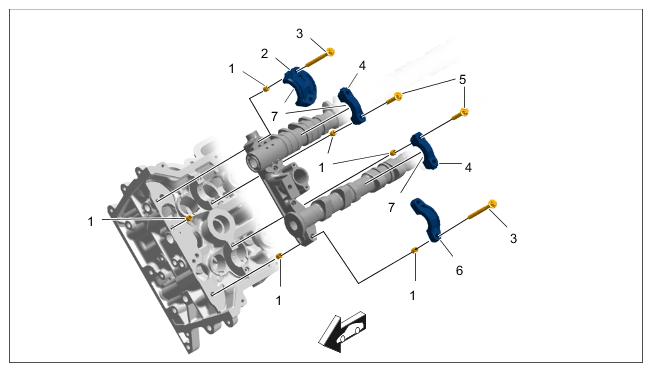

Camshaft mount, cylinder bank 5 to 8

Information
- The intake camshaft for cylinder bank 5 to 8 has a plastic loss preventer to prevent the high-pressure pump's drive coupling from falling off.
- If for some reason the plastic loss preventer was not installed, the drive coupling would fall off when the camshaft is removed. The high-pressure pump and its drive mechanism will still work even without the plastic loss preventer.
Remove camshafts (according to cylinder bank) -1 and 2-3 and 6- and place on a marked, clean surface. Turn the intake camshaft for cylinder bank 1 to 4 so that it can be lifted up and out of the drive coupling for the vacuum pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

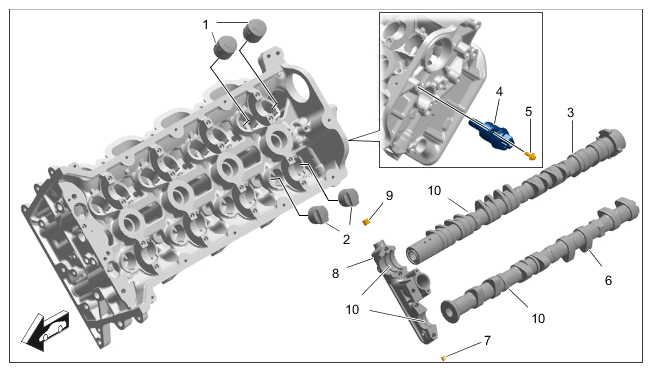

Camshafts, cylinder bank 1 to 4

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

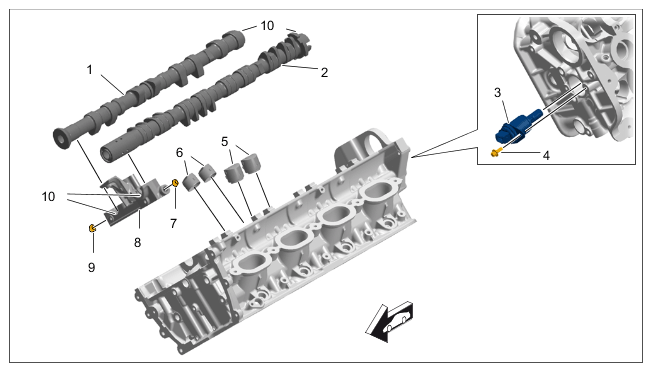

Camshafts, cylinder bank 5 to 8
