Dimensions For Distance Measuring Sensor Adjustment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information
Check that there is sufficient floor space between the vehicle and the adjustment device - the gap between the adjustment device and the vehicle must be 120 cm.
The vehicle can be reversed onto the axle alignment platform if there is not enough floor space in fort of the measuring platform.
The vehicle must be positioned so that the front and rear axles are centered in turnplates/sliding plates.

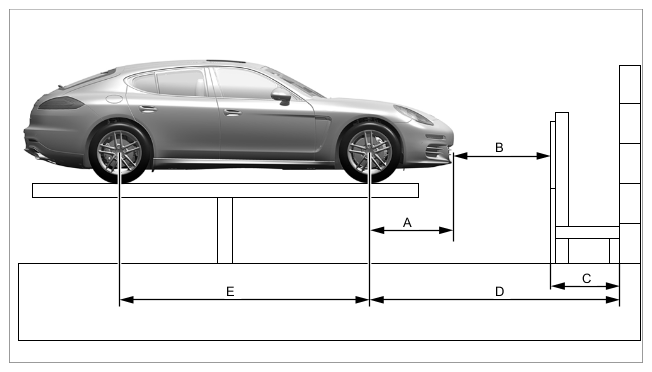

Dimensions for distance measuring sensor adjustment
| A | Vehicle overhang at the front of the Panamera: 98 cm. |
| B | Distance between adjustment tool and vehicle: 120 +/- 20 cm. |
| C | Width of adjustment tool: 62 cm. |
| D | Recommended minimum distance from centre of front wheel (or centre of turnplate) to wall in front of vehicle: 280 cm. |
| E | Wheelbase or distance from turnplate to centre of rotary sliding plate: 292 cm. |
