Removing Control Unit For Distance Measuring Sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

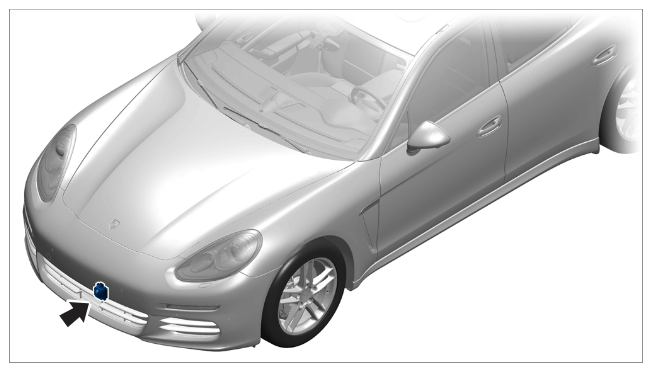

Installation position of control unit for distance measuring sensor

Switch off ignition and remove the remote control from the ignition lock.
Remove cover on sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

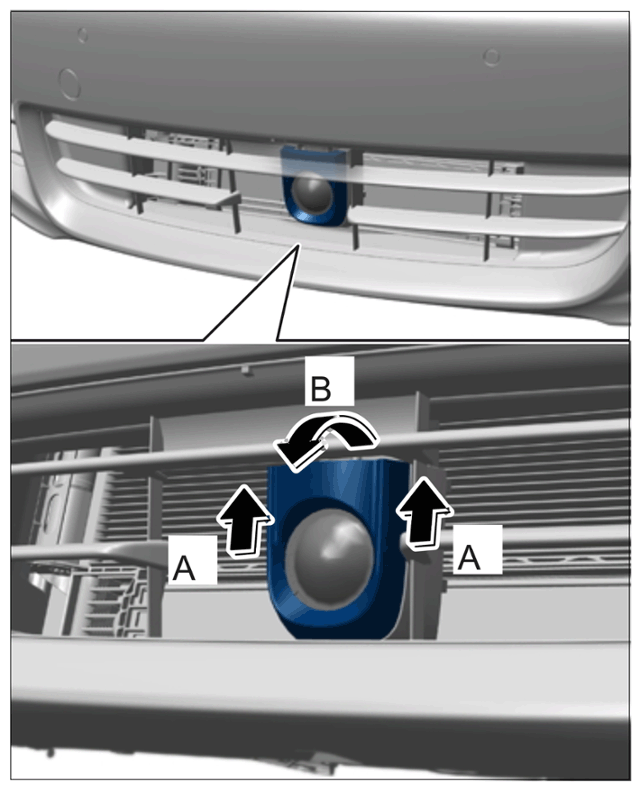

Removing cover on sensor

Release cover at the top.

Fold cover forwards and detach at the bottom holder.

Unclip and remove upper cover.
Release electric plug connection -a- and disconnect connector from control unit for distance measuring sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

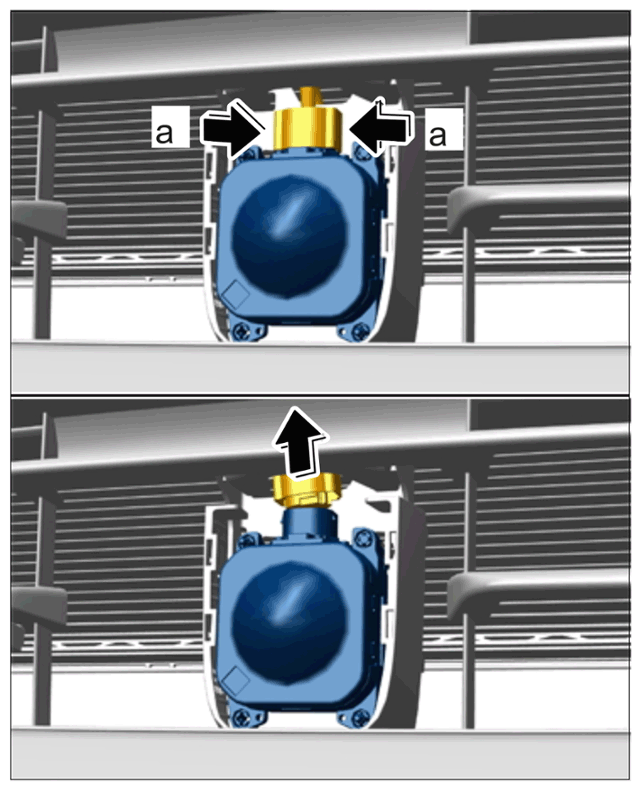

Disconnecting plug connection
Unscrew and remove fastening screws -1 from holder for control unit for distance measuring sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

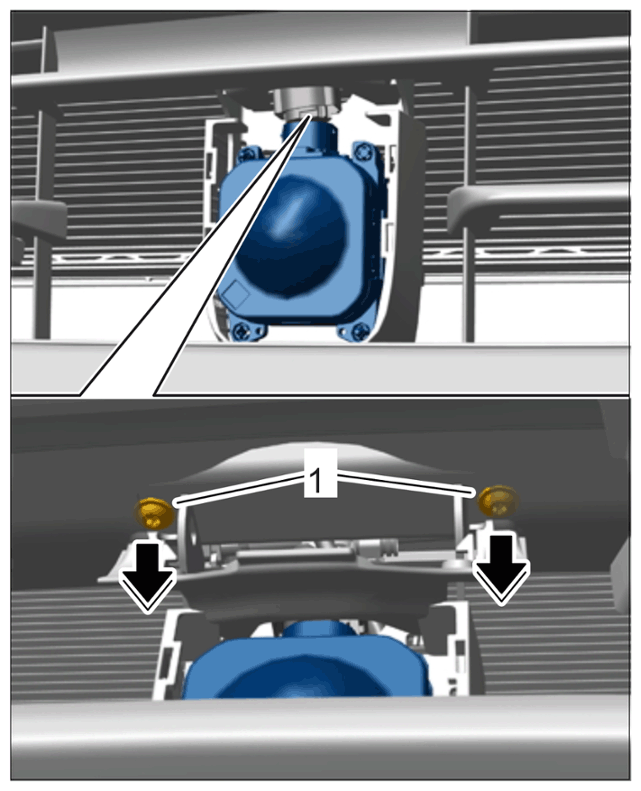

Unscrewing fastening screws
Remove holder together with control unit for distance measuring sensor.
