Removing The Starter

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

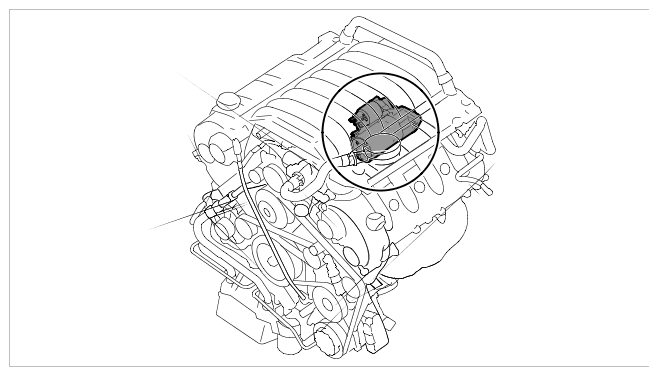

Installation position of starter (example)

Remove protection cap -3- from over the electric connections for the starter.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

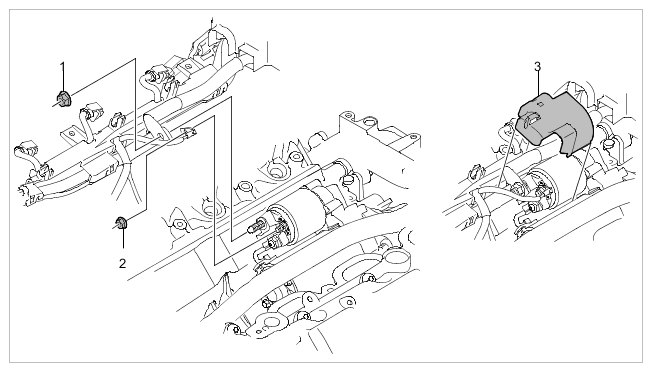

Wing harness for starter
Screw off fastening nuts -1 and 2- on the electric connections at the starter.
Remove electric connections -3 and 4- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

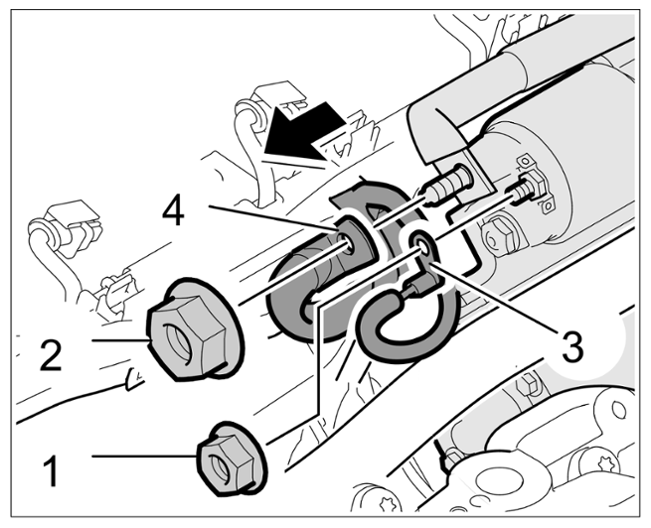

Loosening fastening nuts on starter
Unscrew and remove fastening screws -1- on the cable duct.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

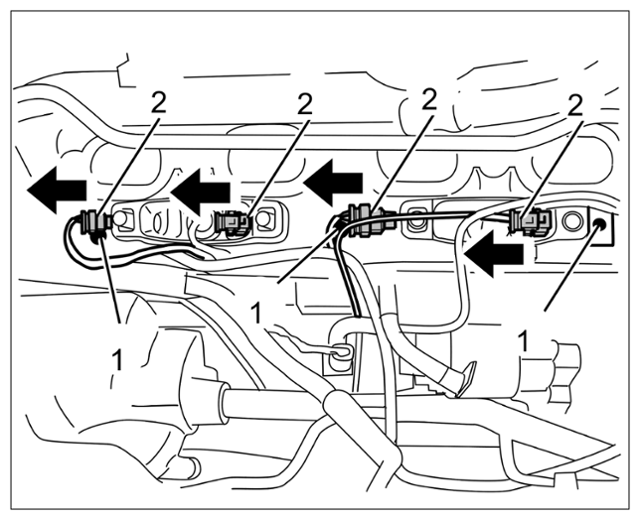

Disconnecting connectors at injectors
Disconnect connectors for injectors -2- on both Cylinder banks -arrow- .

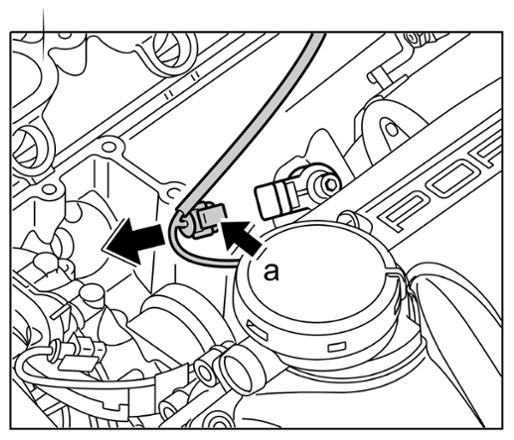

Release connectors on the rear knock sensors on both cylinder banks -a- and disconnect them -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off cable plug
Carefully hold the cable duct to one side.
Unscrew and remove fastening screws -1- on the starter.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

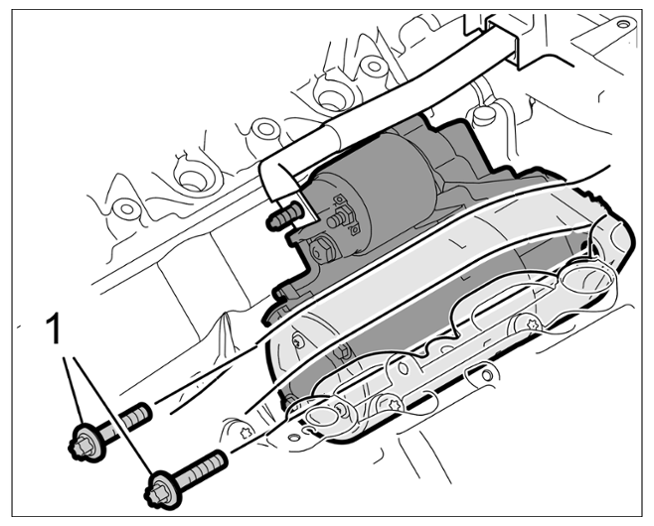

Fastening screws for starter
Remove wastegate cycle valve -1- from the bracket -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

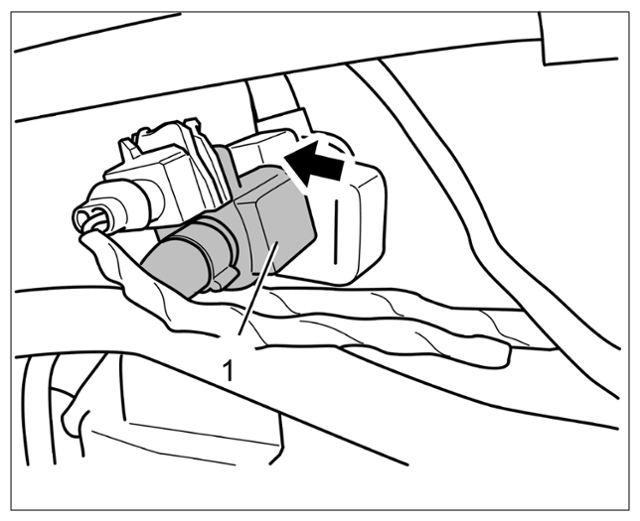

Removing cycle valve
Remove starter.
