Removing Battery Sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off ignition and remove the remote control from the ignition lock.

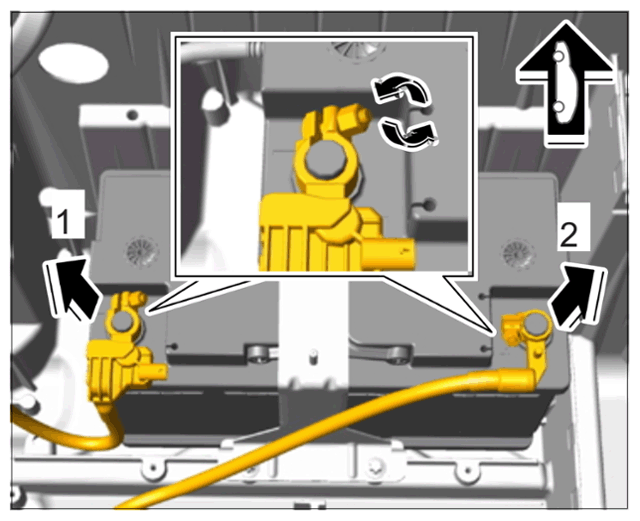

  2. Disconnect the negative cable -1-  on the battery.
    G15198878Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing terminal clamps

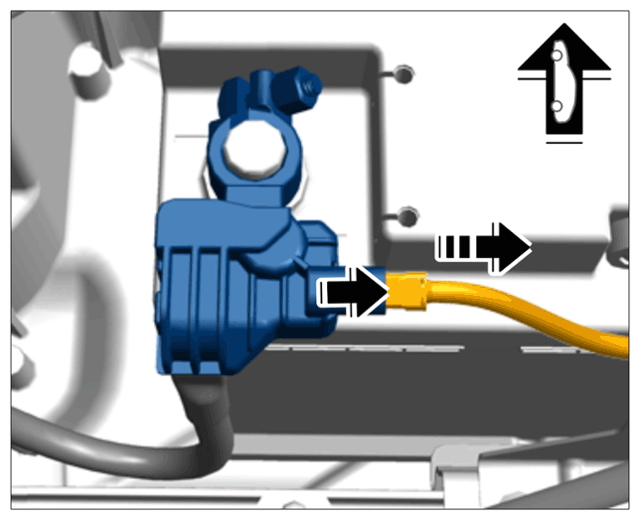

  3. Release and unplug electric connector on the battery sensor.
    G15198879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting electric plug connection

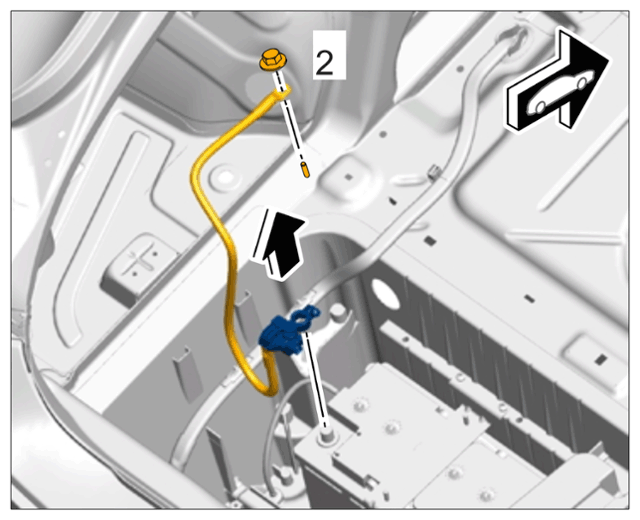

  4. Screw off fastening nut -2-  on the body and remove ground strap and battery sensor.
    G15198880Courtesy of PORSCHE CARS NORTH AMERICA, INC.
