Subsequent Work
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Fit all-wheel final drive
> WM 398819 REMOVING AND INSTALLING FOUR-WHEEL FINAL DRIVE (PANAMERA 4, PANAMERA 4S, PANAMERA TURBO, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS) - section on "Installing"
- Fit front-axle carrier
> WM 400619 REMOVING AND INSTALLING FRONT-AXLE CARRIER (EXCEPT PANAMERA GTS, PANAMERA TURBO S, PANAMERA PLATINUM ED., PANAMERA 4 PLATINUM ED.) - section on "Installing"
- Fit vibration balancer
> 137619 REMOVING AND INSTALLING PULLEY (VIBRATION BALANCER) - section on "Installing"
- Clip in coolant hoses on the oil/water heat exchanger -8-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

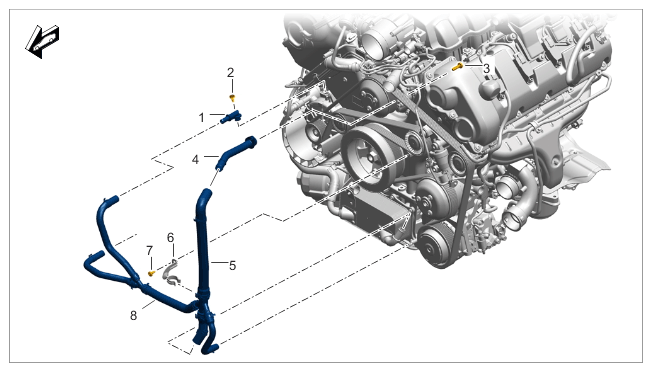

Coolant return on turbo engine
1 Connection piece on generator 2 Connection piece screw 3 Screw, M6 x 20 4 Coolant return line 5 Coolant return hose assembly 6 Holder 7 M6 screw - aluminum screw; always use new aluminum screws and 8 Clip - Remove engine bridge.
- Fill in engine oil. For details, see
> 170117 DRAINING AND FILLING ENGINE OIL (CHANGING ENGINE OIL)
- Connect coolant supply line to the oil/water heat exchanger. Connect the coolant hoses to the oil/water heat exchanger at the same time. Remove hose clamps.
- Check the engine coolant level and top up if necessary.
- Align the front axle and bleed all open systems.
- Carry out a check. After test-driving the vehicle, check the engine for leaks. Then check the oil level.
