Injectors - V6
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information
Please note the following for the V6 =>
- The repair concepts for the V6 are the same as for the V8.
- The special features and component deviations are listed and shown in
> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS
- More significant deviations are shown in separate descriptions.
- If no special features are specifically highlighted, the assembly and adjustment instructions for the V8 apply.
- On the V6, the twin holder must be removed first so that the single holder with the fuel injector can be removed.
- Cylinder 1 must always be installed first with one single holder (as for cylinder 6).
- The holders are not interchangeable.
- The twin holders are identical to the twin holders used on the V8.

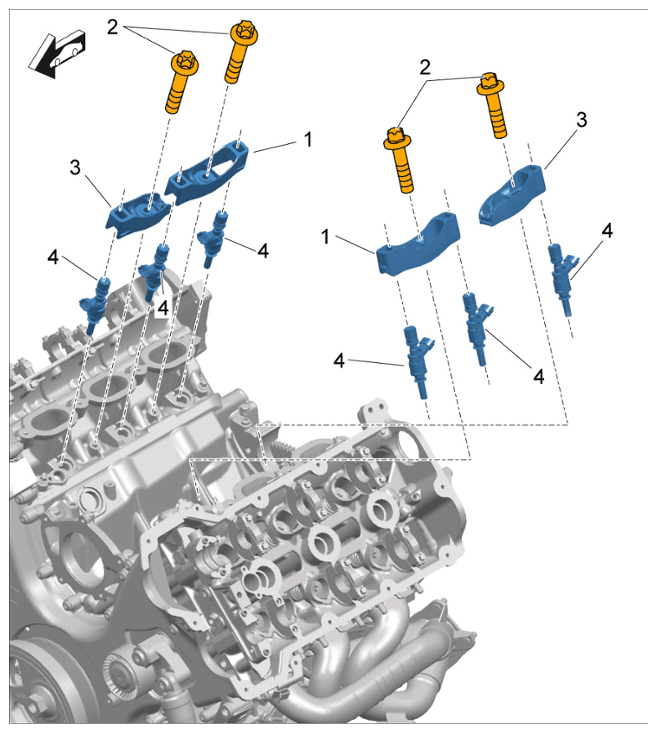

Fuel injectors
| 1 | Twin holder (retainer for two injectors) => for cylinders 2 to 3 and 4 to 5 |
| 2 | Screw, M8 x 30 |
| 3 | Single holder (retainer for one injector) => for cylinders 1 and 6 |
| 4 | Injector (high-pressure fuel injector) |
