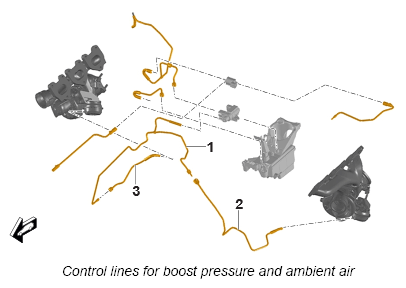

Control lines for boost pressure and ambient air

WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
G12833616Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1
2  Control line for turbocharger, cylinders 4-6
3  Control line for turbocharger, cylinders 1-3
