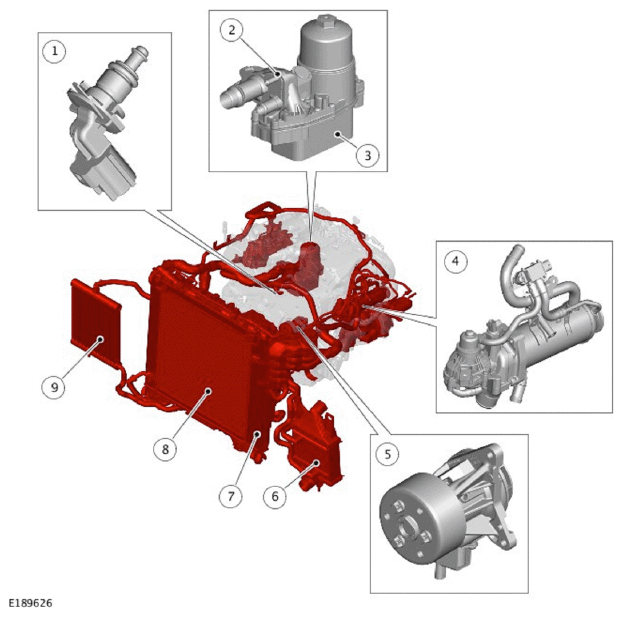

Component Location - 1 Of 3 - Front View

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
G11715274
ITEM DESCRIPTION
1 Engine Coolant Temperature (ECT) sensor
2 Coolant outlet connector
3 Engine oil cooler
4 Low Pressure (LP) Exhaust Gas Recirculation (EGR) cooler
5 Variable coolant pump
6 Charge air cooler
7 Radiator
8 Charge air radiator
9 Auxiliary radiator
