Transfer Case Fluid Level Check

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
41.25.05 IRD fluid - check and top-up All Derivatives 0.3
PART(S)

STEP PART NAME QUANTITY
Step 5 Transfer case fluid level plug washer 1
CAUTION: The fluid filler plug is not a fluid level plug.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: ENGINE UNDERSHIELD .
  3. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Remove and discard the sealing washer.

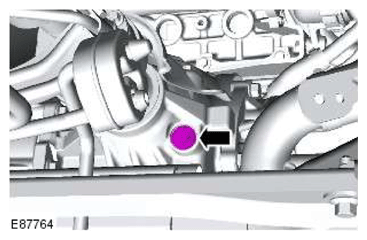

    G11591613
  4. CAUTION: The fluid filler plug is not a fluid level plug.

    Fill the transfer case with the recommended fluid.

    Refer to: SPECIFICATIONS .

  5. NOTE: Install a new sealing washer.
    G11591613

    Renew Part: Transfer case fluid level plug washer Quantity: 1  .

    Torque Specification: 35 Nm

  6. Refer to: ENGINE UNDERSHIELD .
