Oil Feed Line For Turbocharger, Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Remove oil feed line -1- .
1. 1.1. Unscrew screw -2- on clip -3- .
2. 1.2. Unscrew screw -4- used to secure oil line to cylinder head.
3. 1.3. Disconnect oil line -1- from the cylinder head by moving it back and forth -arrows- .
4. 1.4. Guide oil line out by moving it downwards.

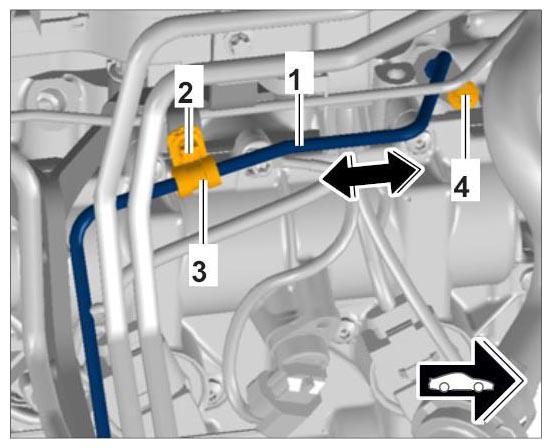

  Fig 1: Moving Turbocharger Oil Feed Line And Cylinder Bank 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
