Removing Rear Spoiler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release electric plug connection for the antenna cable -a-  and disconnect it -B-  .

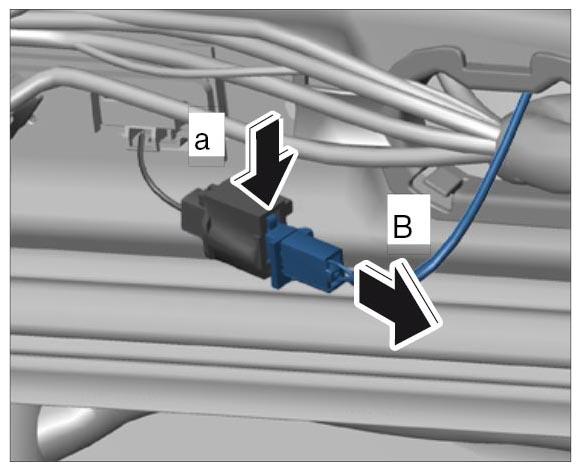

    Fig 1: Disconnecting Plug Connection For Antenna
    G09940266Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove caps -1-  .
  3. Screw off fastening nuts from the inside -2-  .
  4. Unscrew fastening screws from the inside -3-  .
  5. Use a plastic wedge to unclip the rear spoiler in direction of arrow -4-  .

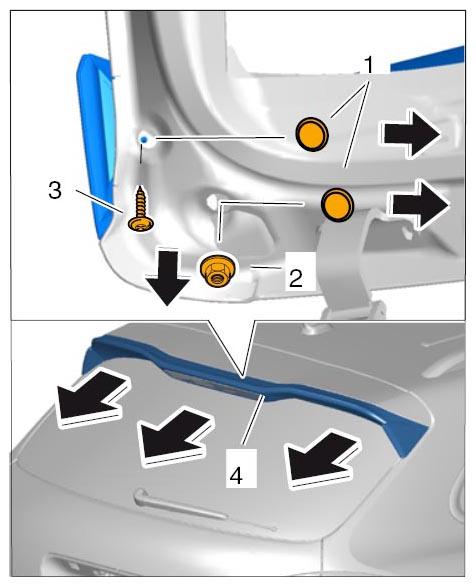

    Fig 2: Loosening Rear Spoiler
    G09940267Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove rubber sleeves -2, 3-  from the antenna and additional brake light from the rear lid -1-  and pull out antenna cable.

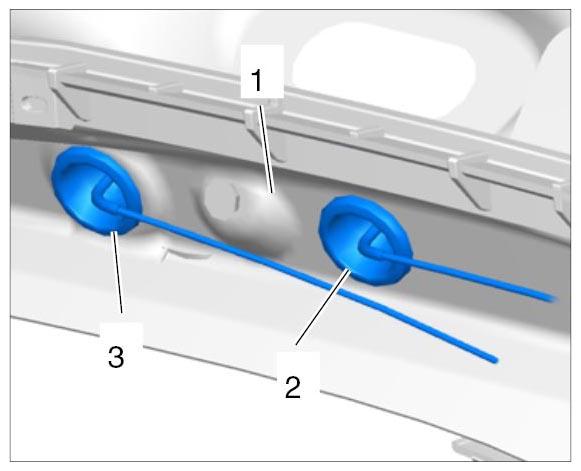

    Fig 3: Identifying Rubber Sleeves
    G09940268Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Release electric plug connection -1-  for the additional brake light -a-  and disconnect it -arrow-  .

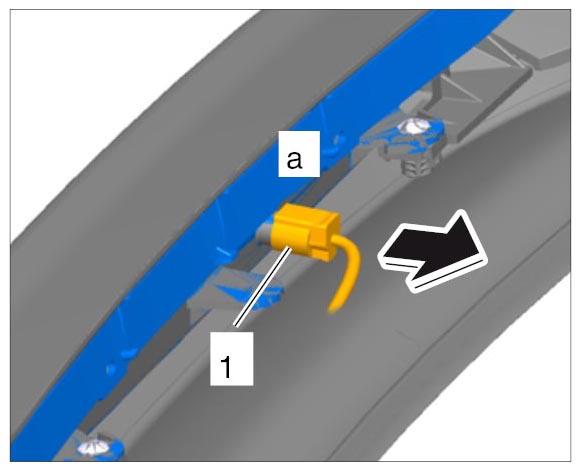

    Fig 4: Releasing Electric Plug Connection
    G09940269Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Remove rear spoiler.
