Removing Lower Part Of Centre Console Cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

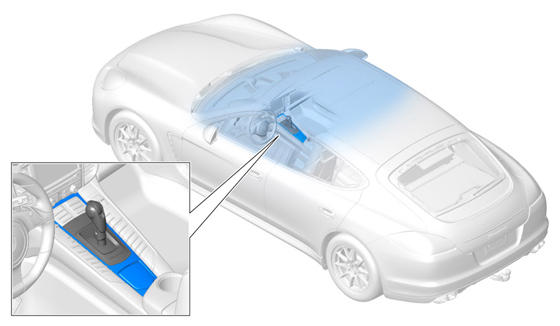

Fig 1: Identifying Lower Part Of Centre Console Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws.

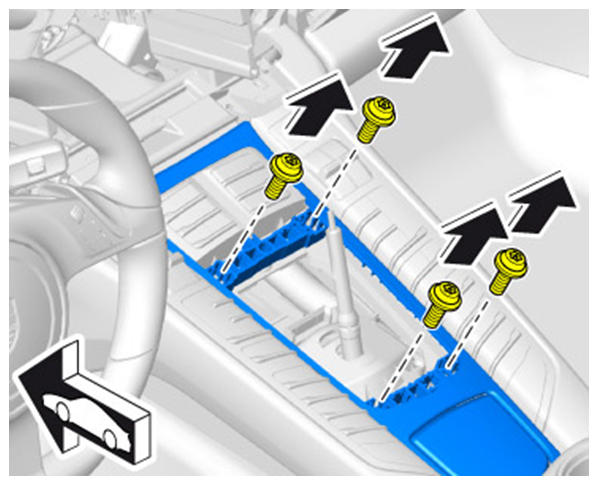

Fig 2: Releasing Lower Part Of Centre Console Cover Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip lower part of center console cover.

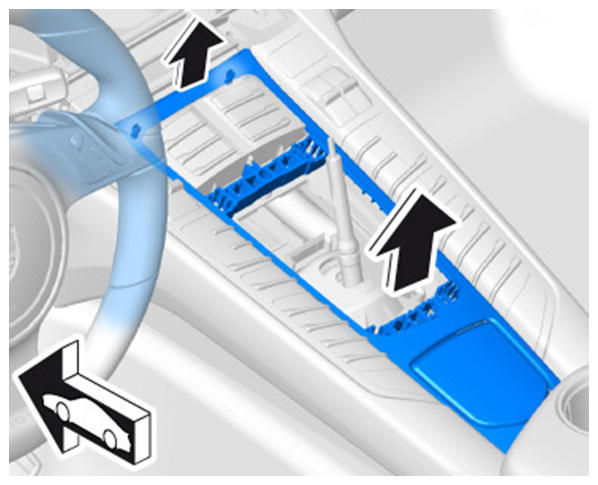

Fig 3: Removing Lower Part Of Centre Console Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug connection for ashtray -a- and pull it off -B- .

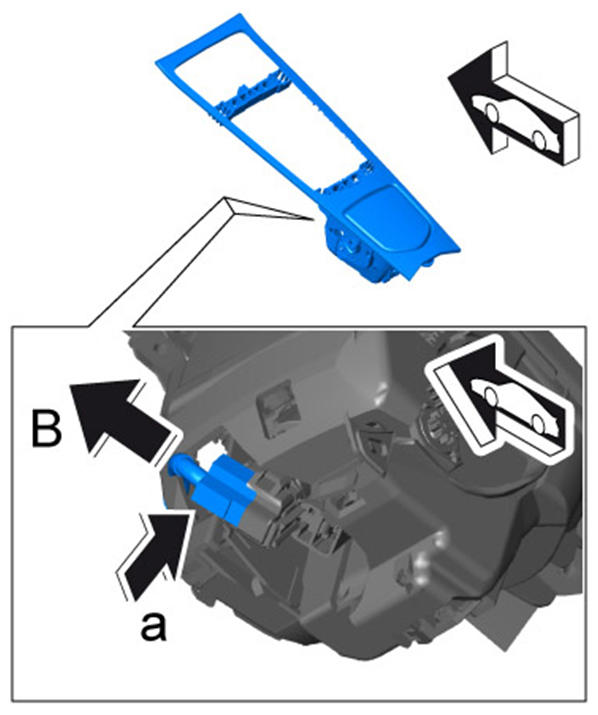

Fig 4: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

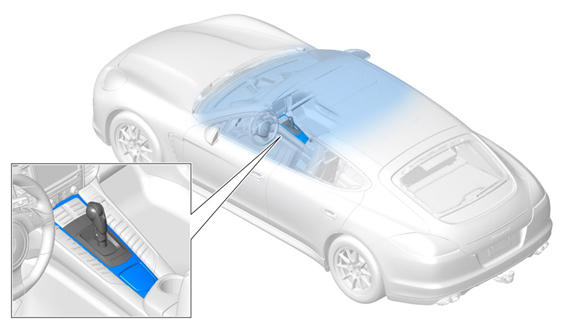

Fig 1: Identifying Lower Part Of Centre Console Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws.

Fig 2: Releasing Lower Part Of Centre Console Cover Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip lower part of center console cover using a suitable tool.

Fig 3: Removing Lower Part Of Centre Console Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug connection for ashtray -a- and disconnect it -B- .

Fig 4: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
