Installing Gearshift Bracket

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

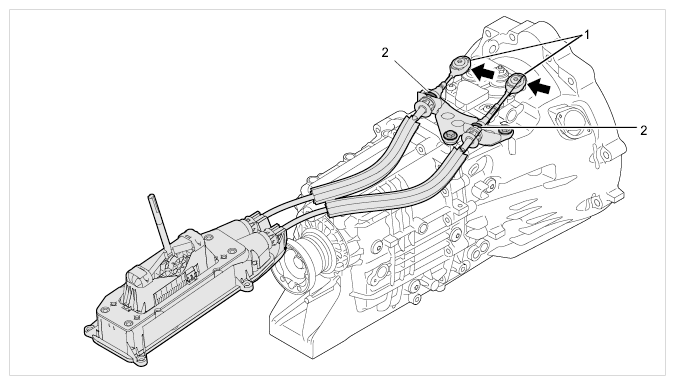

Insert operating cables into gearshift bracket and install safety clips -arrows- .

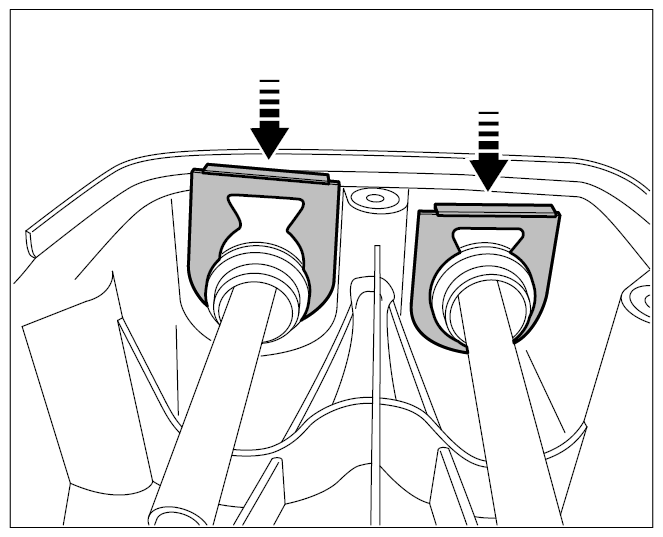

Fig 1: Installing Safety Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

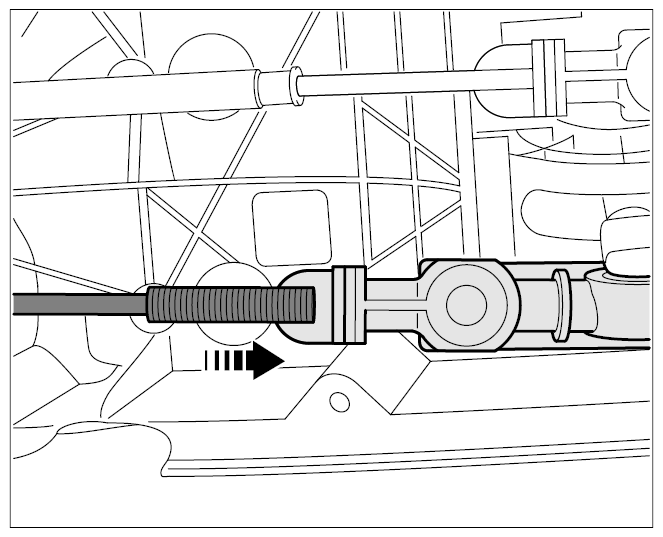

Insert cable ends -arrow- into the adjuster.

Fig 2: Inserting Cable Ends Into Adjuster
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

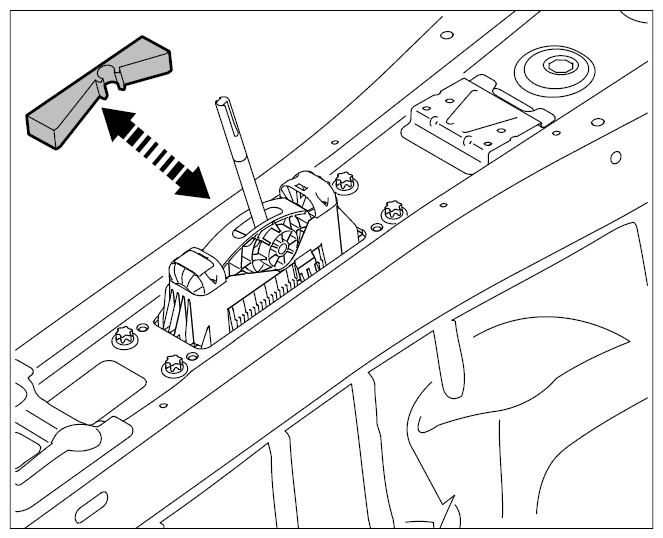

Align gearshift bracket in neutral position using locking bridge 9619/2 .

Fig 3: Aligning Gearshift Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

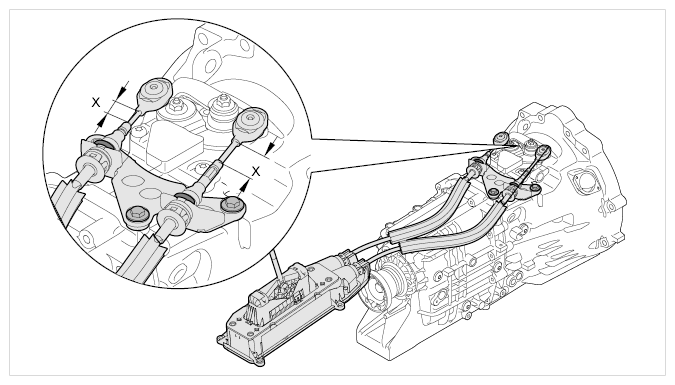

When fitting the gearshift bracket, adjust the position -X- of the operating cables before removal and latch in adjuster.

Fig 4: Measuring Excess Operating Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

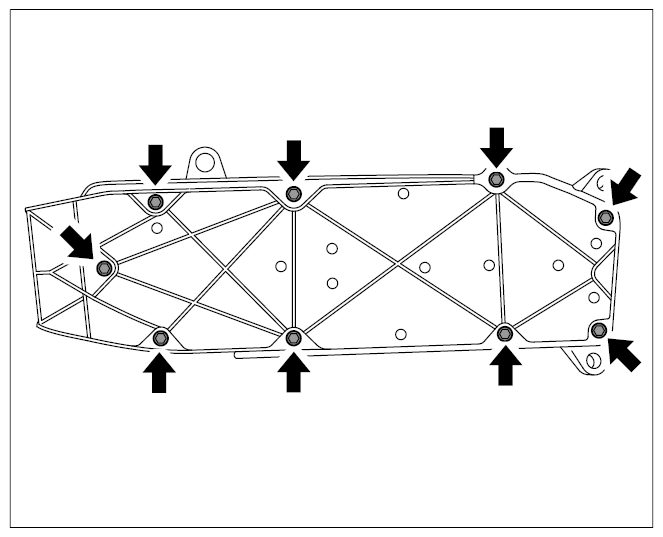

Screw in fastening screws -arrows- for cover on gearshift bracket.

Fig 5: Identifying Screws On Gearshift Bracket Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Locking bridge 9619/2 on the gearshift bracket must be removed.
Install gearshift bracket together with operating cables.
Guide rubber sleeve on the operating cable through the support and latch the cable ends -1- onto the transmission.

Fig 6: Locating Cable Connection To Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert safety clips -2- on the support.

Fig 7: Inserting Safety Clips On Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check position of clips using a mirror.
Press gearshift bracket into the cut-out in the cardan tunnel.

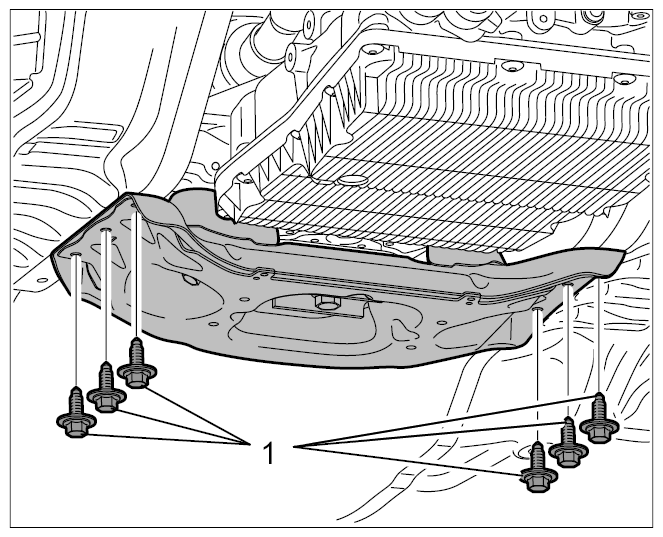

Screw in fastening screws for transmission support. → Tightening torque: 65 Nm (48 ftlb.)

Fig 8: Identifying Fastening Screws Of Transmission Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

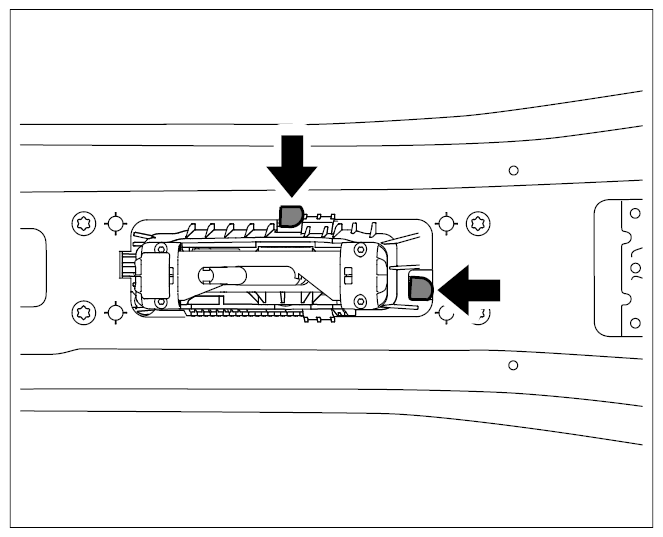

Tighten fastening screws -arrows- for gearshift bracket to cardan tunnel. → Tightening torque: 6 Nm (4.5 ftlb.)

Fig 9: Identifying Gearshift Bracket Mounting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release adjuster -arrows- .

Fig 10: Removing Adjuster
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align gearshift bracket in neutral position using locking bridge 9619/2 .

Fig 11: Aligning Gearshift Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Latch adjuster -arrows- into place

Fig 12: Latching Adjuster
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
