Changing Transmission Oil

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Secure vehicle to prevent it rolling away.
To check transmission oil the vehicle must be horizontal.

Place a drip pan underneath.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew oil drain plug -2- and drain transmission oil.

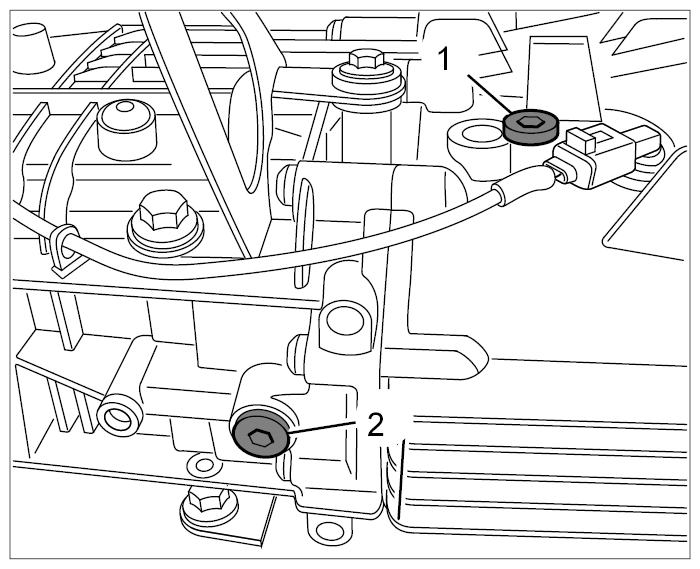

Fig 1: Identifying Oil Drain Plug And Drain Transmission Oil
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in a new oil drain plug -2- . → Tightening torque: 35 Nm (26 ftlb.)

Fig 2: Identifying Oil Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew oil inspection plug -1- .

Fig 3: Identifying Oil Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Use only oil approved by Porsche.
Fill with oil up to the bottom edge of the inspection window. → 3X00IN TECHNICAL VALUES, TRANSMISSION
Screw in a new oil inspection plug -1- . → Tightening torque: 35 Nm (26 ftlb.)

Fig 4: Oil Inspection Plug Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
