Installing Strut (A-Strut)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit strut (A-strut).

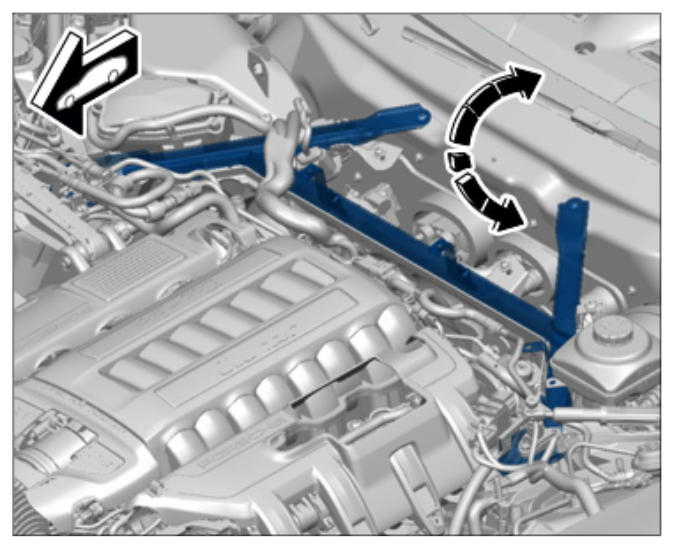

    1. 1.1. Get another mechanic to help you guide the strut sideways under the brake fluid reservoir and over the center plenum panel wall into installation position. The screw positions must be aligned. Place strut on the studs under the windscreen. → Fitting strut
      Fig 1: Fitting Strut
      G09807513Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Fit two large cable plugs on the strut. To do this, press the two plugs sideways into the strut.

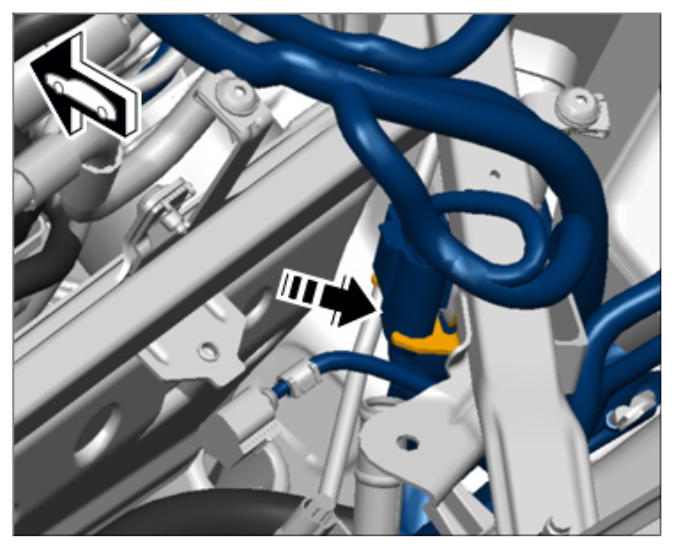

    3. 1.3. Press engine wire harness in under the strut. → Wiring harness for strut
      Fig 2: Pressing Engine Wire Harness In Under Strut
      G09807514Courtesy of PORSCHE CARS NORTH AMERICA, INC.

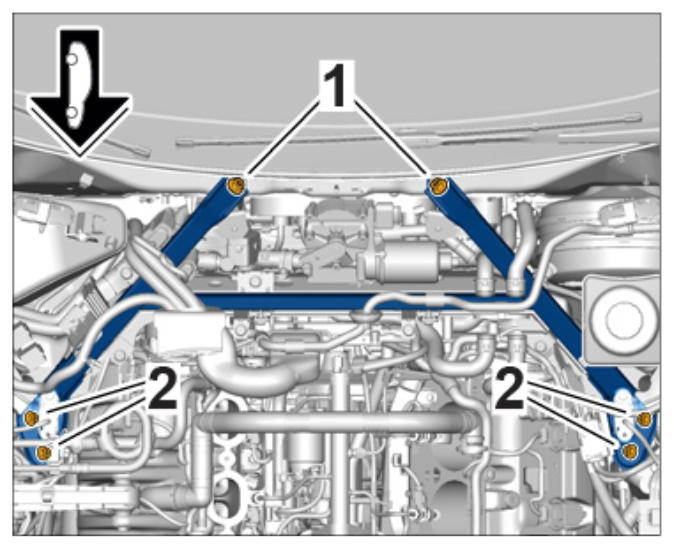

    4. 1.4. Fitting fastening screws and nuts on the strut (A-strut) -1 and 2-
      Fig 3: Identifying Strut Mounting Screws And Nuts
      G09807515Courtesy of PORSCHE CARS NORTH AMERICA, INC.

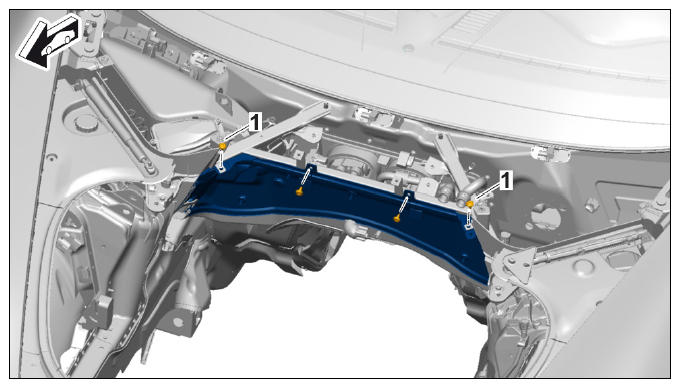

    5. 1.5. Fit fastening screws and nuts connecting the strut (A-strut) -1-  to the plenum panel.
      Fig 4: Identifying Strut And Plenum Panel Mounting Screws
      G09807516Courtesy of PORSCHE CARS NORTH AMERICA, INC.

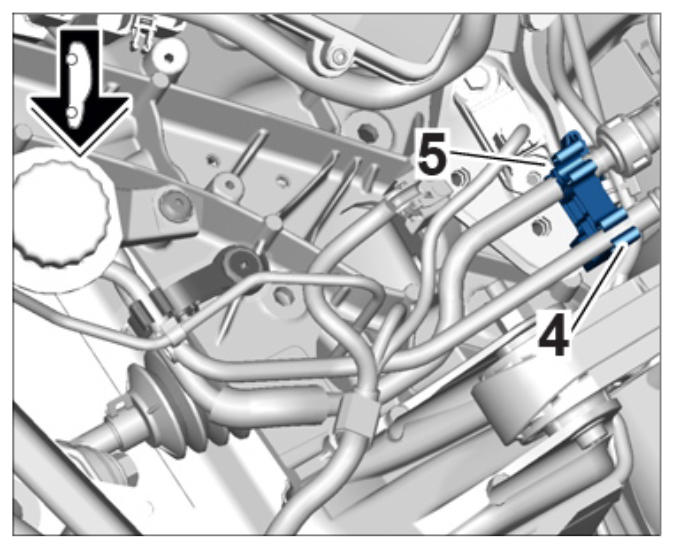

    6. 1.6. Fit lines (vacuum, tank ventilation, fuel) -4 and 5-  and plastic clip. Fit (clip in) the plastic clip on the strut.
      Fig 5: Identifying Cable Holder And Lines
      G09807517Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit center plenum panel wall at the top.

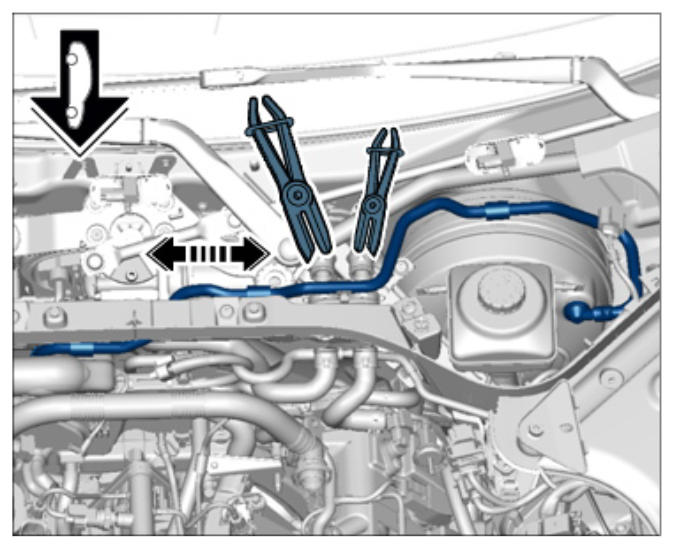

    1. 2.1. Guide the center plenum panel wall at the top in sideways under the wiring harness and pull the vacuum line through the bore in the grommet. Fit grommet. → Guiding vacuum line through the plenum panel wall
      Fig 6: Guiding Vacuum Line Through Plenum Panel Wall
      G09807518Courtesy of PORSCHE CARS NORTH AMERICA, INC.

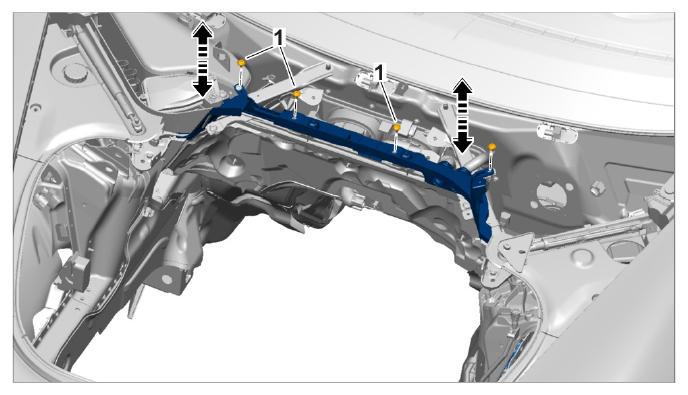

    2. 2.2. Align the center plenum panel wall at the top and move it into installation position. Fit the fastening screws. → Centre plenum panel at the top
      Fig 7: Aligning Centre Plenum Panel At Top
      G09807519Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Attach vacuum line -3-  to the vacuum pump.
    Fig 8: Attaching Vacuum Line To Vacuum Pump
    G09807520Courtesy of PORSCHE CARS NORTH AMERICA, INC.

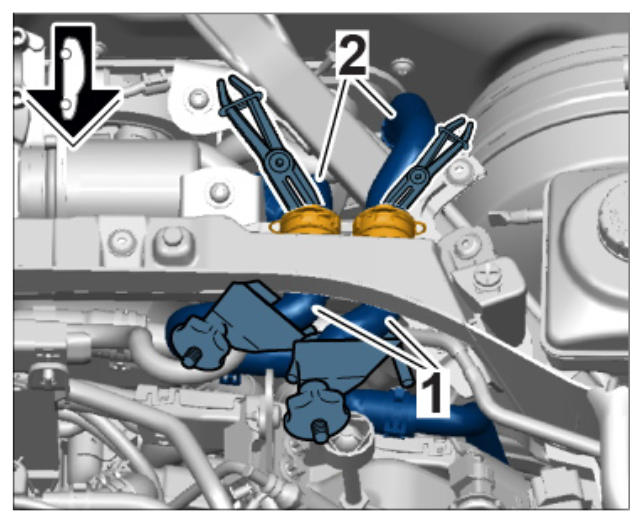

  4. Fit engine wire harness with rubber sleeve (seal) into the plenum panel wall.
  5. Fit heater and coolant hoses -2-  on both sides of the center plenum panel wall at the top.
    Fig 9: Fitting Engine Wire Harness With Rubber Sleeve (Seal) Into Plenum Panel Wall
    G09807521Courtesy of PORSCHE CARS NORTH AMERICA, INC.

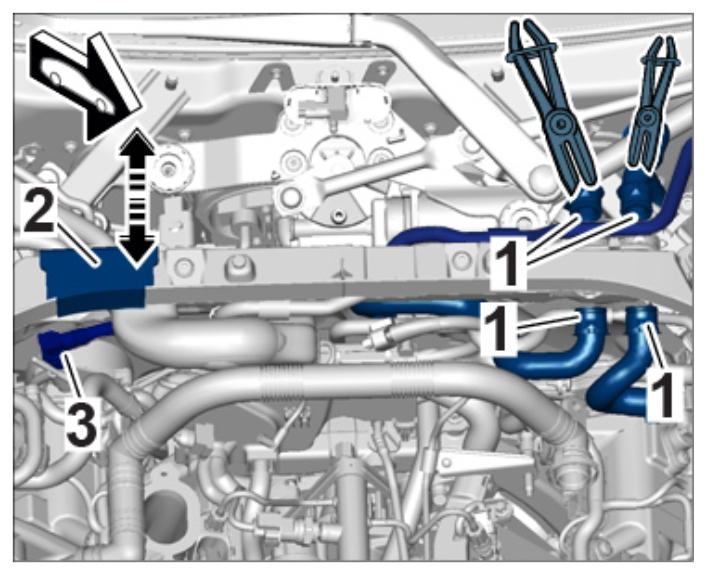

    1. 5.1. The locking clip on the couplings -1-  must lock with an audible click at the correct position. Remove hose clamps.
      Fig 10: Disconnecting Hoses
      G09807522Courtesy of PORSCHE CARS NORTH AMERICA, INC.

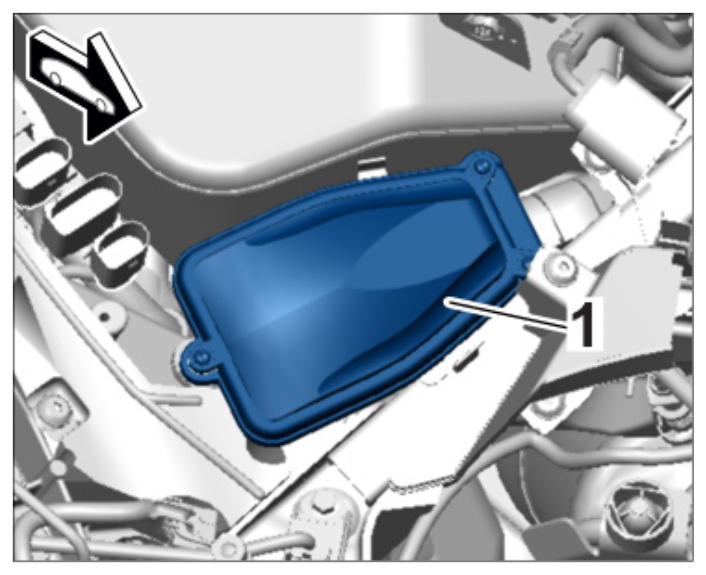

  6. Engage relay box -1-  in the strut.
    Fig 11: Identifying Relay Box On Strut
    G09807523Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Fit left plenum panel wall.
    1. 7.1. Move plenum panel wall into installation position.

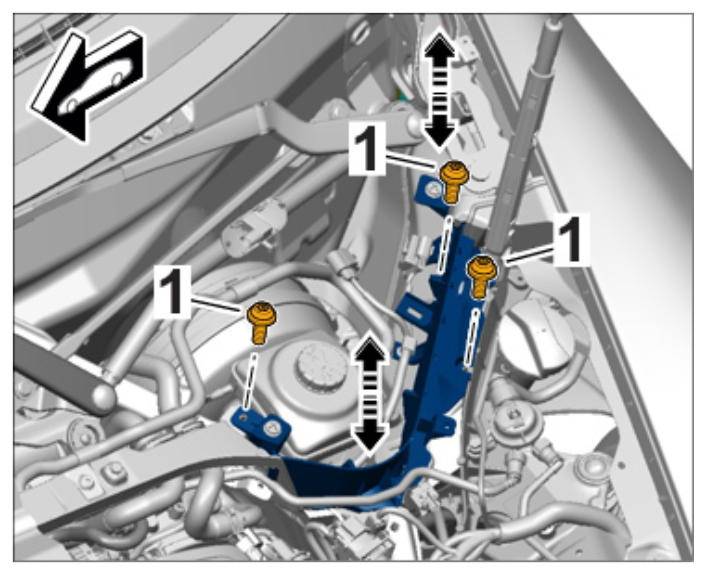

    2. 7.2. Fit fastening screws on the left plenum panel wall. → Mounting for left plenum panel wall at the side
      Fig 12: Mounting For Left Plenum Panel Wall At Side
      G09807524Courtesy of PORSCHE CARS NORTH AMERICA, INC.

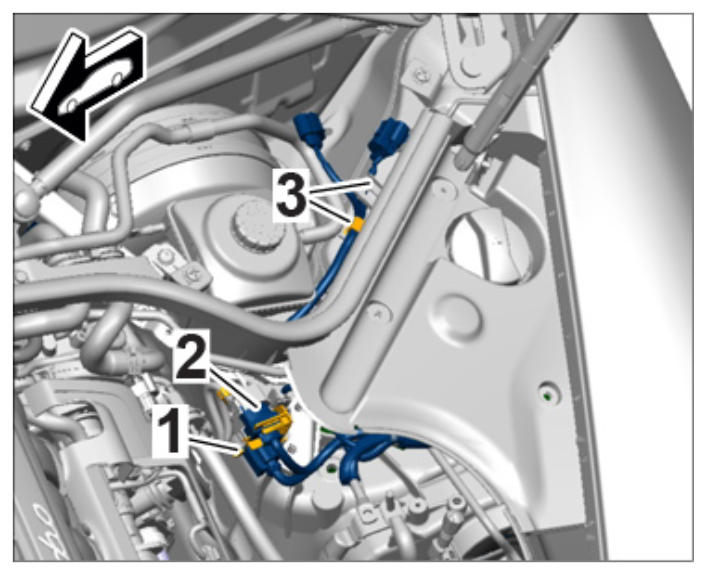

    3. 7.3. Secure engine wire harness -3-  at the plenum panel wall.
    4. 7.4. Connect cable plugs -1 and 2-  for both sensors. Carefully plug the cable plug on the spring strut -1-  straight in (risk of breakage).
      Fig 13: Identifying Left-Hand Side Plenum Panel Wall
      G09807525Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Fit right plenum panel wall.
    1. 8.1. Move plenum panel wall into installation position.

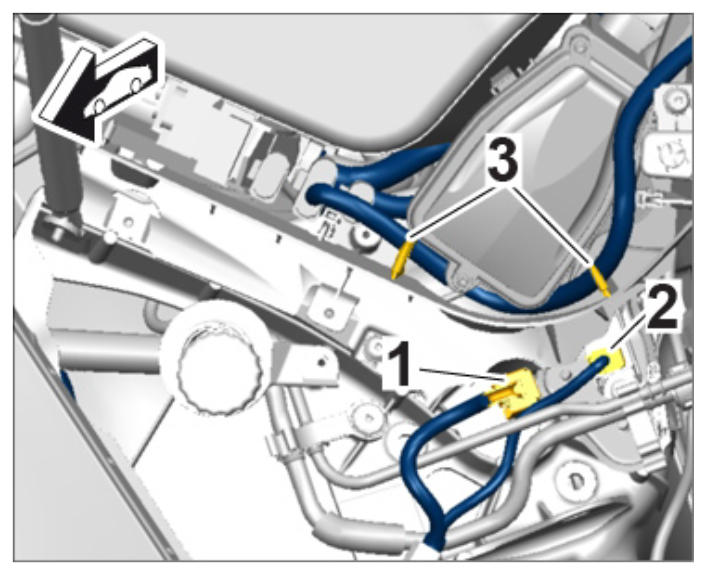

    2. 8.2. Connect cable plugs for both sensors -1 and 2-  . Carefully plug the cable plug -1-  on the spring strut straight in (risk of breakage).
      Fig 14: Identifying Right-Hand Side Plenum Panel Wall
      G09807526Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 8.3. Route and secure engine wire harness on the plenum panel wall. -3-

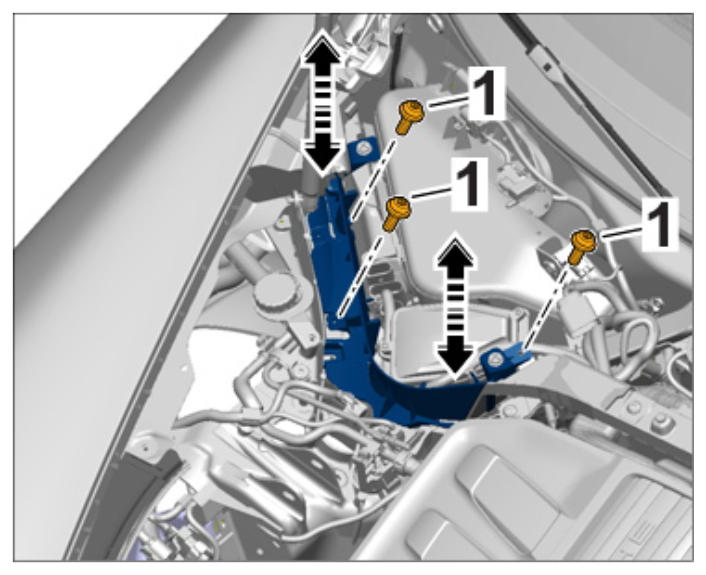

    4. 8.4. Fit fastening screws on the right plenum panel wall. → Mounting for right-hand side plenum panel wall
      Fig 15: Fitting Fastening Screws On Right Plenum Panel Wall
      G09807527Courtesy of PORSCHE CARS NORTH AMERICA, INC.

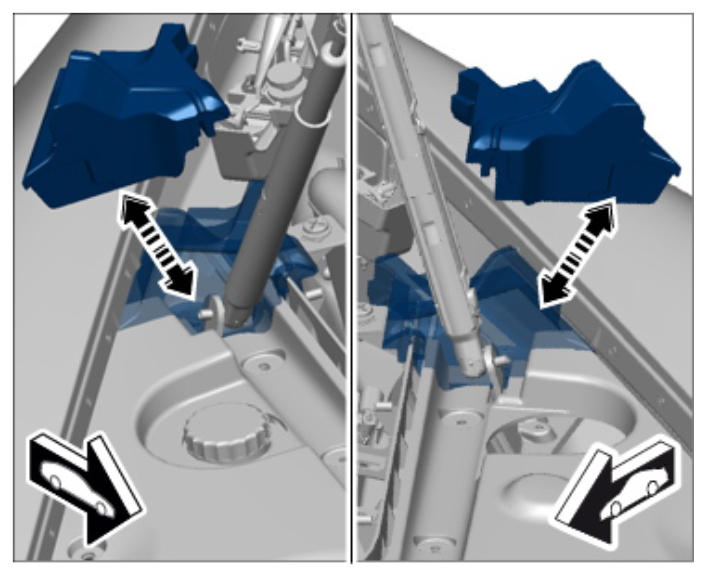

  9. Fit side foam pads to the wing on both sides. → Two foam pads at the sides
    Fig 16: Fitting Side Foam Pads To Wing On Both Sides
    G09807528Courtesy of PORSCHE CARS NORTH AMERICA, INC.
