Subsequent Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in connector for PASM -arrow-  on the piston rod.

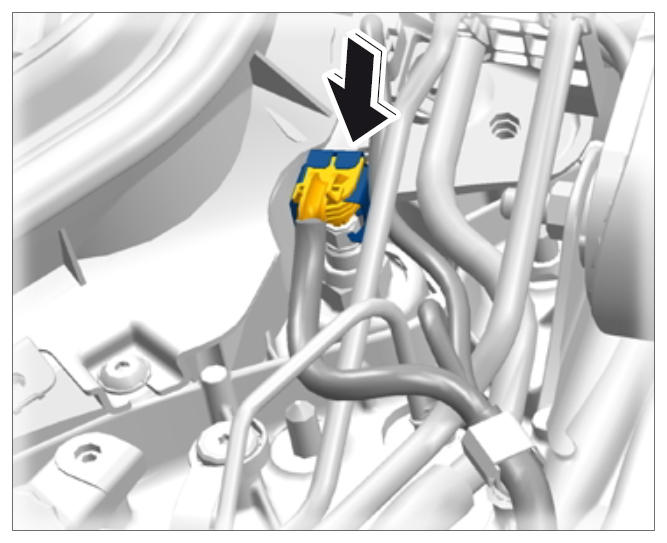

    Fig 1: Locating PASM Plug Connection
    G09807483Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit cowl panel cover. → Installing Cowl Panel Cover
  3. Fit plenum panel cover. → Installing Plenum Panel Cover
  4. Fit wheel. → 440519 REMOVING AND INSTALLING WHEEL
