Installing Spring Strut (PASM)

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

• All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels, or the wheel suspension is raised with a universal vehicle lift. Dimension -1-  , from lower edge of wing to center of axle corresponds to vehicle position. The current height can be found in →  4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT  . Always observe the following points!

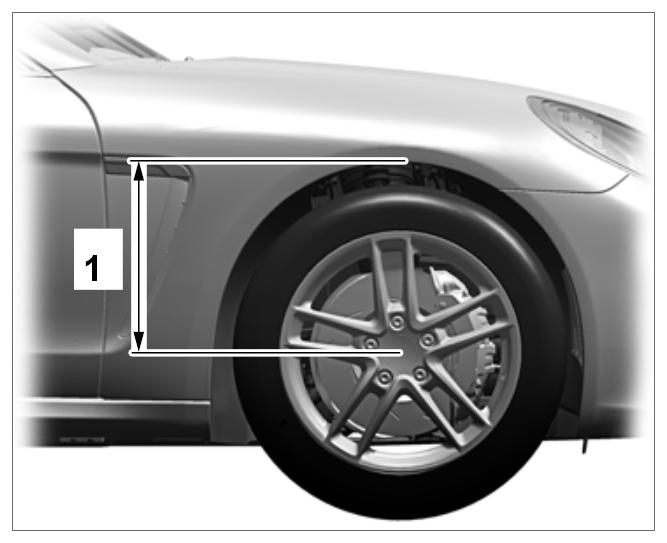

  Fig 1: Identifying Dimension 1 - Centre Of Wheel To Lower Edge Of Wing (Front Axle)

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• On vehicles with air springs, the respective air spring must be bled using the Porsche System Tester. → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM
• Vehicle position can be set by carefully raising the relevant wheel bearing housing.
• Use an intermediate layer (hard rubber)! Do not damage the brake cover plate.

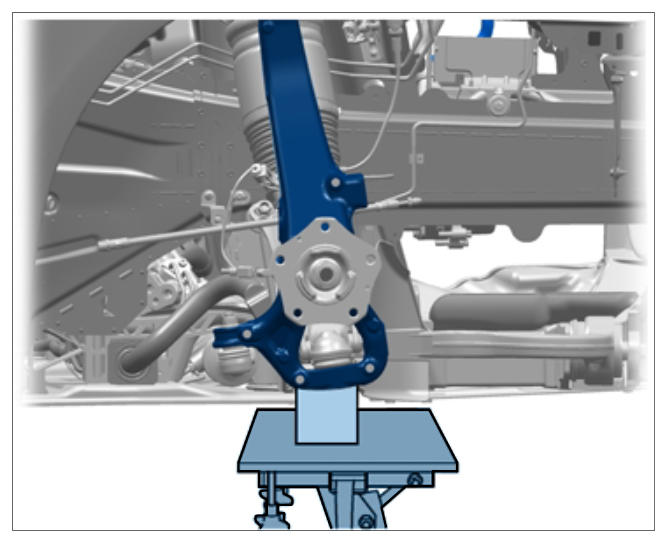

  Fig 2: Lifting Wheel Carrier (Example Without Wheel And Brake Disc)

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Screws and nuts are Geomet-coated and must not be greased.
• Grease the splines of the drive shaft slightly with aluminum paste Optimoly TA.
• Drive shafts must not be left hanging from the joint stop! Tie them up.

Installation is performed in reverse order.

Upper spring strut to body: Tightening torque 46 Nm (34 ftlb.)

Lower spring strut to trailing arm: Tightening torque 90 Nm (67 ftlb.) +120°

Drive shaft to differential:

Conventional connecting link to air-spring strut: Tightening torque 40 Nm (30 ftlb.) +90°

PDCC connecting link to air-spring strut: Tightening torque 50 Nm (37 ftlb.) +30°

Tie-rod ball to wheel bearing housing:

Upper trailing arm to wheel bearing housing:

Air guide to lower trailing arm:

Brake calliper to wheel bearing housing:
