Preliminary Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cowl panel cover. → 508719 REMOVING AND INSTALLING COWL PANEL COVER
  2. Remove plenum panel cover. → 852219 REMOVING AND INSTALLING PLENUM PANEL COVER

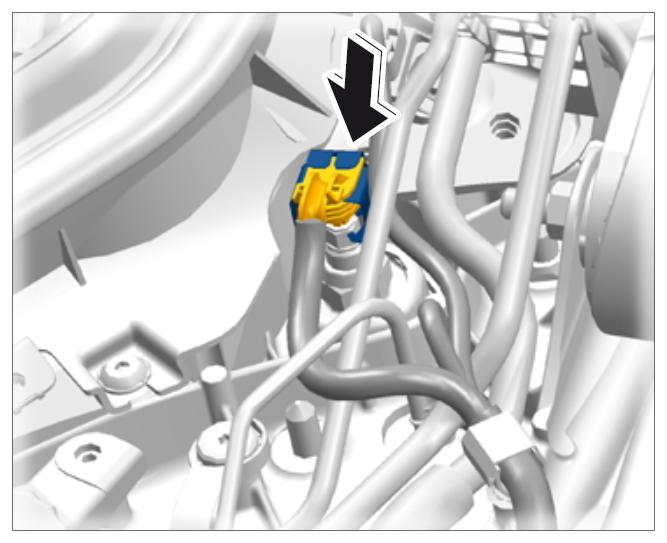

  3. Pull PASM connector -arrow-  off the piston rod.
    Fig 1: Disconnecting Plug Connection For PASM
    G09807461Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Raise the vehicle. → 4X00IN LIFTING THE VEHICLE
  5. Remove wheel. → 440519 REMOVING AND INSTALLING WHEEL
