Removing Front Anti-Roll Bar

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

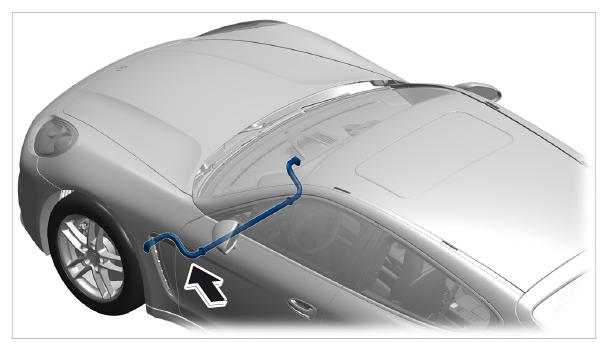

Fig 1: Identifying Front Anti-Roll Bar
G09807434Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Get a second mechanic to secure the anti-roll bar to prevent it from falling.
  2. Screw off fastening nuts -1-  on the suspension/stabilizer on both sides of the vehicle.

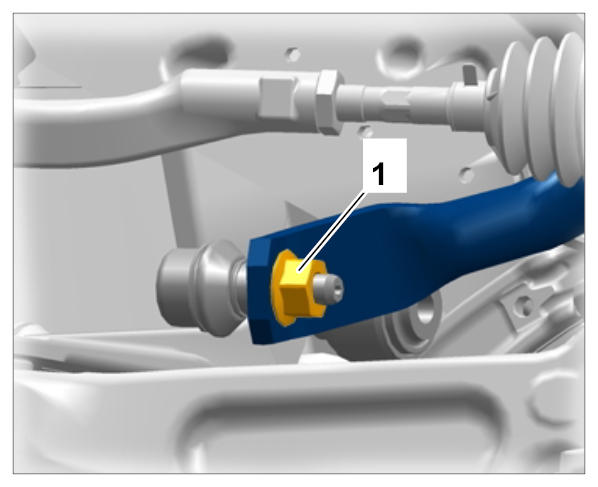

    Fig 2: Identifying Suspension/Stabilizer Mounting Nut
    G09807435Courtesy of PORSCHE CARS NORTH AMERICA, INC.

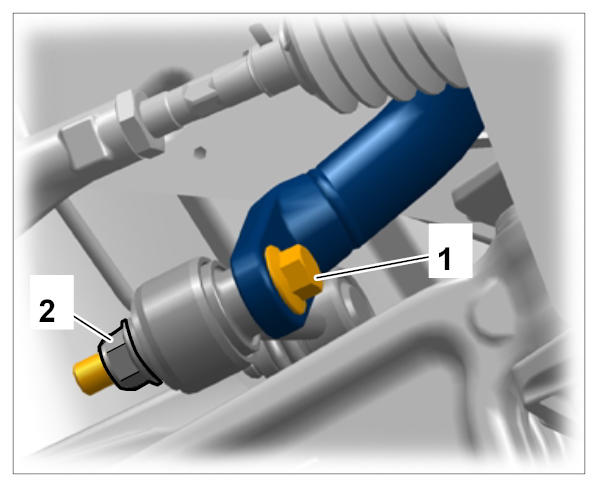

    Fig 3: Identifying Suspension/Stabilizer Mounting Nut
    G09807436Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press suspension/stabilizer outwards.
  4. Remove anti-roll bar.
